Computational Details:

Study of 'Flow around a Heated Cylinder'

• Rectanglar domain of length 1.5 and width 1.0
• one heated circle of radius 0.1 and located at x =1.0, y =0.5
• inflow b.c.'s: constant velocity 1 at the left side edge  i.e in between x=0, y>0 and x=0, y<1
• outflow b.c's: unknown at the right side edge i.e. in between x=1.5, y>0 and x=1.5, y<1
• Other b.c.'s: zero velocity at the fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=1,000

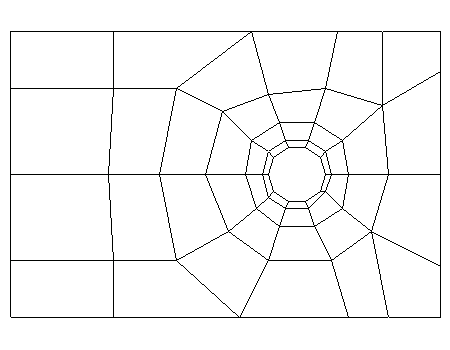

• coarse mesh (=level 1): 50 cells, 64 vertices, 278 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 5: 12800 cells, 13024 vertices, 64448 d.o.f.`s
• computational mesh on level 5: 12800 cells, 13024 vertices, 64448 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.01
• equidistant time stepping for visualization with k=0.25 (= 1 frame)
• Total time T=30 corresponds to 3,000 time steps
• fractional step theta scheme

• date: 07/May/2004
• simulation by: srikrishnudu nagandla
• visualization by: srikrishnudu nagandla
• SUN ULTRA1/140: 1.3766 MB, 7170.55 seconds
• GMV data:727. 49MB
• Software: FEATFLOW1.2 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
