Computational Details:

Study of 'Flow around a Heated Cylinder'

• Rectangular domain of lenght 2.0 and width 1.0
• one heated circle of radius 0.1 and located at x = 1.6, y =0.5
• inflow b.c.'s: constant velocity 1 at the left bottom edge i.e in between x=0, y>0 and x=0, y<1
• outflow b.c's: unknown at the right top edge i.e. in between x=2.0, y>0 and x=2.0, y<1
• Other b.c.'s: zero velocity at the fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=1,000

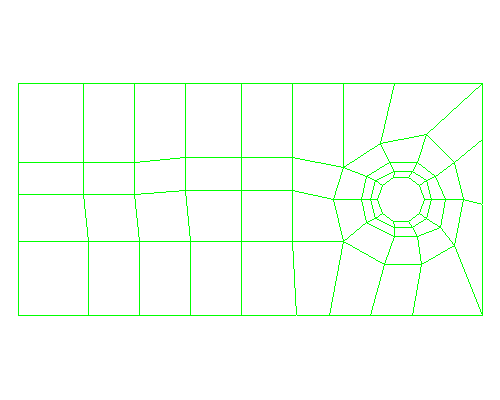

• coarse mesh (=level 1): 62 cells, 79 vertices, 344 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 5: 15872 cells, 16144 vertices, 79904 d.o.f.`s
• computational mesh on level 5: 15872 cells, 16144 vertices, 79904 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.01
• equidistant time stepping for visualization with k=0.25 (= 1 frame)
• Total time T=30 corresponds to 3,000 time steps
• fractional step theta scheme

• date: 03/30/2004
• simulation by: Paruchuri Sasidhar
• visualization by: Paruchuri Sasidhar
• SUN ULTRA1/140: 13.65 MB, 5791.93 seconds
• GMV data: 884.10 MB
• Software: FEATFLOW1.2 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
