Study of 'Flow around a Heated cylinder in a channel`

This page contains the 2D simulation of fluid flow around a cylinder (radius is equal to 0.3 unit) in a channel of length 2.5 and height 1.0 unit. The cylinder is located at x = 1.75 & y = 0.5. The calculation starts from rest. The flow is observed with the Reynolds number 1000. This simulation is part of a Software-Praktikum at the University of Dortmund in 2004.

• Distribution of temperature/concentration via Boussinesq model



  Visualization via temperature distribution from the heated circle, shaded (5 MB).

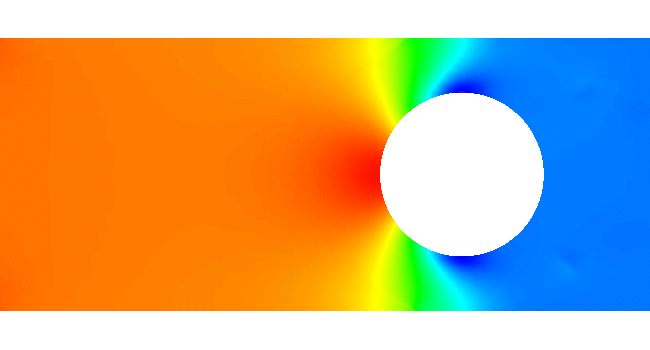

• Pressure



  Visualization via pressure plots, shaded (5 MB).






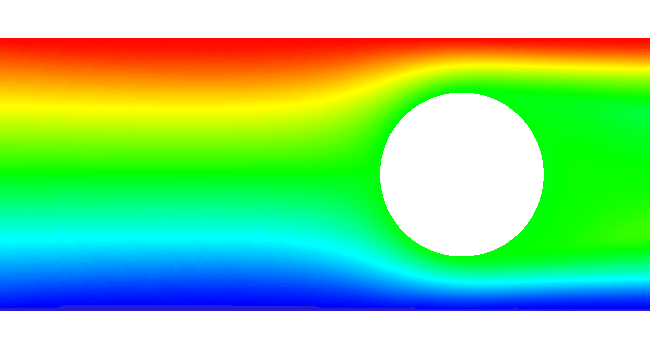

• Streamfunction



  Visualization via streamline plots (5 MB).

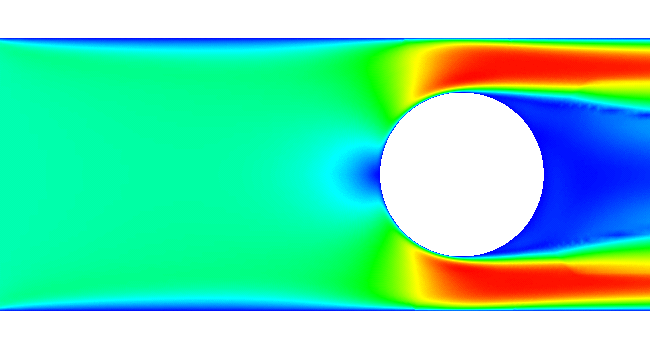

• Velocity



  Visualization via velocity plots (5 MB).

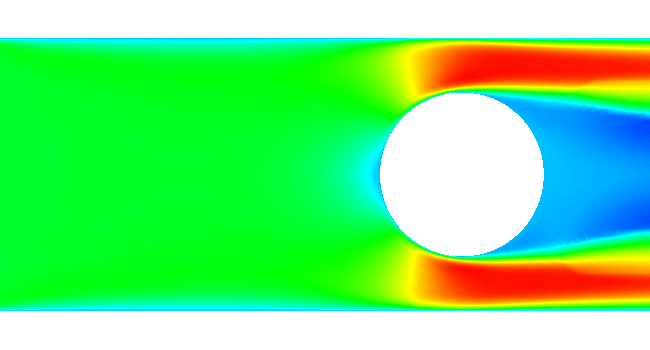

• U-Velocity



  Visualization via U-velocity plots (5 MB).






• V-Velocity



  Visualization via V-velocity plots (5 MB).
