Study of 'Shell and Tube'-Heat-Exchanger exhibiting different tube arrangements

• Engineering point of view :

  'Shell and Tube'-Heat-Exchanger are widely spread in the field of chemical engineering. Still it is not clear how to arrange the tubes inside the appartus in order to get an optimal heat-transfer behaviour. Beginning from a simple configuration with only one tube(Rad=1.5; Area=Pi*Rad^2). We studied cases for 2x2 through 5x5 tube arrangemnets for constant circumference as well as constant area.


• Mathematical point of view :

  We studied a 2D cutplane of the above described apparatus. Fluid flow calculation in a square of 4 units with 25 circles each of radius 0.3, placed equidistantly inside the square. The calculation starts from rest state. The flow is observed with the Reynolds number, Re=1,000. This simulation is part of a Software-Praktikum at the University of Dortmund in the year 2004.


• Distribution of temperature/concentration via Boussinesq Model

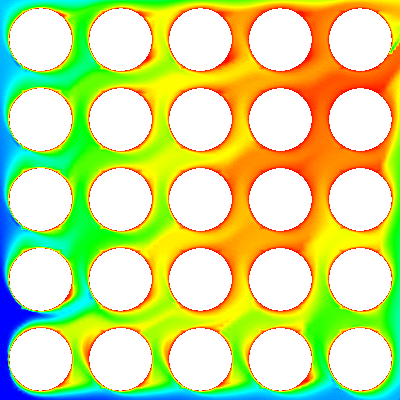

  Visualization via temperature distribution from the heated circle, shaded(1 MB).








• Pressure

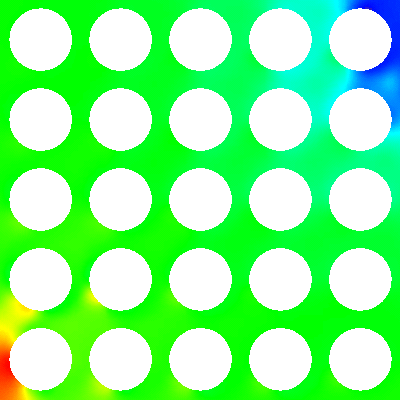

  Visualization via pressure plots, shaded(1 MB).






• Streamfunction

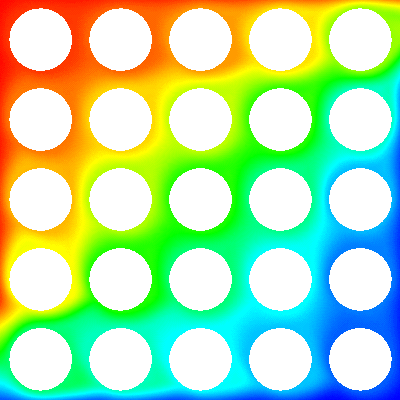

  Visualization via streamline plots(1 MB).










• Velocity

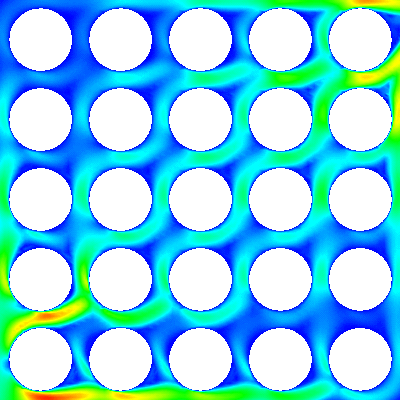

  Visualization via velocity plots(1 MB).
