Study of 'Wedge-Shaped'-Hopper with different geometric arrangements


Computational details
Short description and remarks
-> Visualization




Short description and remarks

'Wedge-Shaped'-Hoppers are widely spread in the field of chemical engineering and mechanical engineering.Hoppers come in diiferent shapes and sizes.The hopper has two geometric characteristics namely the half-angle and outlet dimension.We studied the cases with different half-angle and outlet dimensions of the hopper.
This page contains the 2D simulation of flows in a hopper with hopper half-angle=15 degrees,inlet radius=1.2 and outlet radius=0.3.The calculation starts from rest.The flow is observed with the Reynolds.This simulation is part of a Software-Praktikum at the University of Dortmund in 2004.


Visualization

  • Pressure

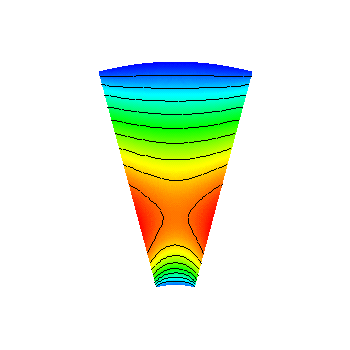

    Visualization via pressure plots, shaded (0.152 MB).



  • Streamfunction

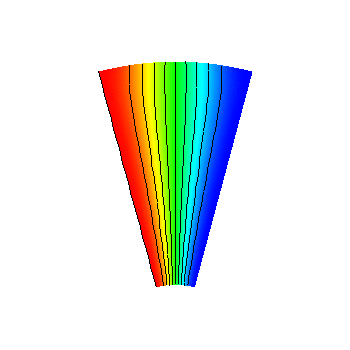

    Visualization via streamline plots (0.152 MB).





  • Velocity

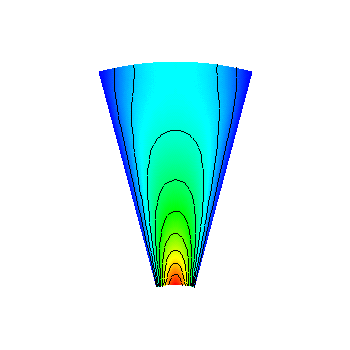

    Visualization via velocity plots (0.152 MB).
