Study of 'Wedge-Shaped'-Hopper with different geometric arrangements


Computational details
Short description and remarks
-> Visualization




Short description and remarks

'Wedge-Shaped'-Hoppers are widely spread in the field of chemical engineering and mechanical engineering.Hoppers come in different shapes and sizes.The hopper has two geometric characteristics namely the half-angle and the outlet dimension.We studied cases with different half-angle and outlet dimensions of the hopper.
This page contains the 2D simulation of flows in a hopper with hopper half-angle=30 degrees,inlet radius=0.2 and outlet radius=0.9.The calculation starts from rest. The flow is observed with the Reynolds.This simulation is part of a Software-Praktikum at the University of Dortmund in 2004.


Visualization

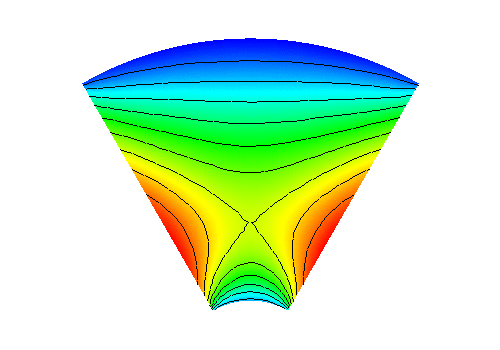

  • Pressure

    Visualization via pressure plots, shaded (0.25 MB).

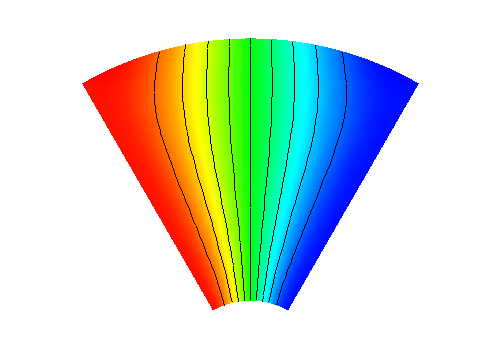

  • Streamfunction

    Visualization via streamline plots (0.24 MB).

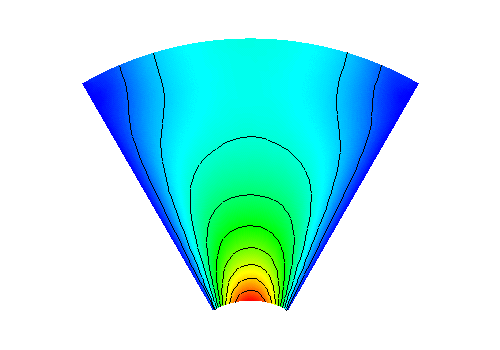

  • Velocity

    Visualization via velocity plots (0.24 MB).
