| Description
of the flow problem
- Wedge Shaped domain with hopper half angle =50 degrees
- inflow b.c.'s: velocity due to gravity at the top of
the
hopper
- outflow b.c's: velocity due to gravity at the
bottom of the
hopper
- Other b.c.'s: zero velocity at the fixed walls
- initial condition at t=0: starting from rest
- viscosity parameter: 1/nu=1,000
|
|
| Description
of the spatial discretization

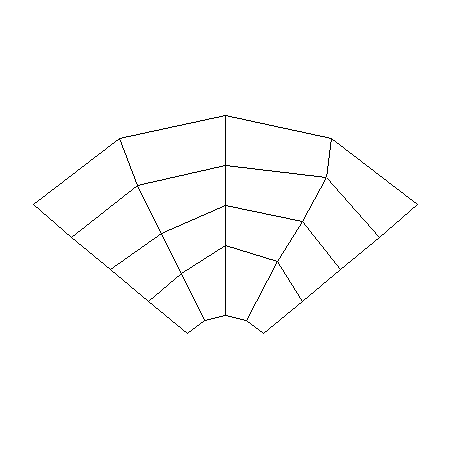

- coarse mesh (=level 1): 16 cells, 25 vertices, 96 d.o.f.`s
- uniform refinements with exact boundary adaption
- visualization on level 6: 16,384 cells, 16,641 vertices,
82,432 d.o.f.`s
- computational mesh on level 6: 16,384 cells, 16,641
vertices, 82,432 d.o.f.`s
- nonconforming nonparametric rotated bilinear fem's
(meanvalue version), UPW
|
|
| Description
of the temporal discretization
- equidistant time stepping for computation with k=0.01
- equidistant time stepping for visualization with k=0.5 (=
1 frame)
- Total time T= 6 corresponds to 3,000
time steps
- fractional step theta scheme
|
|
| Computer
requirements
- date: 03/30/2004
- simulation by: BUBUK RAMARAO
- visualization by: BUBUK RAMARAO
- pentium III /500 MHz: 17.66 MB, 565.83 seconds
- GMV data: 2.07 MB
- Software: FEATFLOW1.2 + BOUSS_POWERLAW
|
|
| Mathematical
details
- For more details about numerical and algorithmic aspects
see the `Mathematical Background' in the FEATFLOW
manual or visit our paper archive for
much more details.
- The problem-specific data for the applied software version
including parameter files and input data can be downloaded
here!
|
|
