Stirred Tank Reactor exhibiting different agitator configuration


Computational details
Short description and remarks
-> Visualization




Short description and remarks

To ensure successfull operation of a continous stirred tank reactor(CSTR) it is necessary to understand its dynamic characteritics.A good understnading will enable effective control design. The aim of this Project is to simulate a CSTR with special emphasis the relation between fluid flow and the placement of heat exchangers
This doccumentation contains the description of a 2D simulation of the fluid flow in a CSTR of external diameter 14.5 units.


Visualization

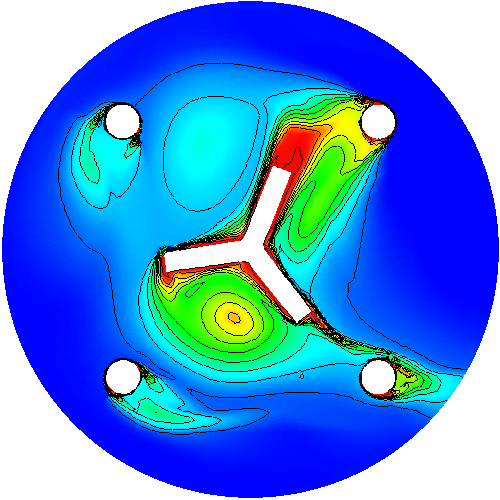

  • Distribution of temperature/concentration via Boussinesq model

    Visualization via temperature distribution from the heated circle, shaded (1 MB).

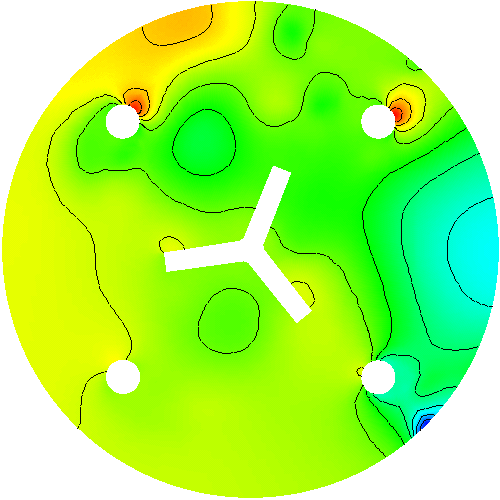

  • Pressure

    Visualization via pressure plots, shaded (1 MB).

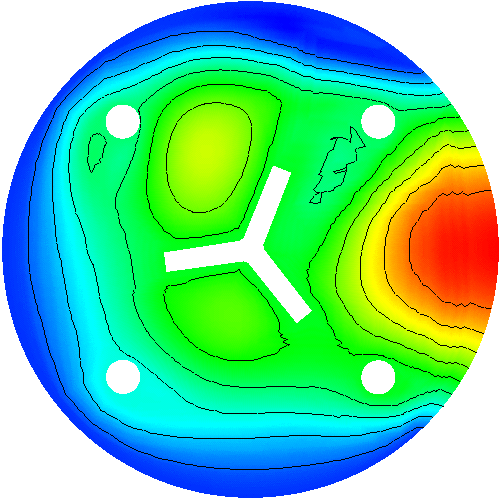

  • Streamfunction

    Visualization via streamline plots (1 MB).

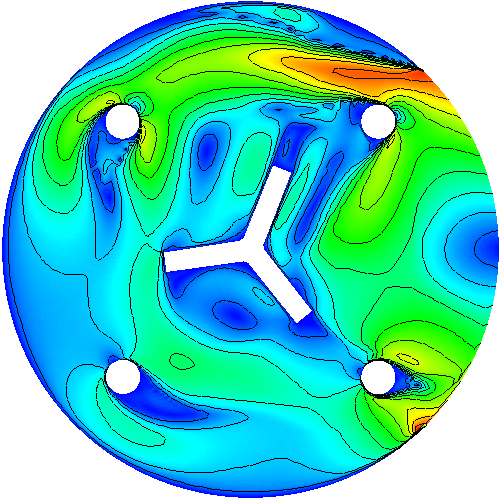

  • Velocity

    Visualization via velocity plots (1 MB).
