Computational Details:

Study of Delta Wing in Square Domain

•  Square domain of length 30

• one Wing in form of traingle and located at x =0 , y = 0
• inflow b.c.'s: constant velocity 1 at the left bottom edge i.e in between x=-10, y=-7.5 and x=10, y=7.7
• outflow b.c's: unknown at the right top edge i.e. in between x=20, y=-7.5 and x=20, y=7.7
• Other b.c.'s: zero velocity at the fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=1,0000

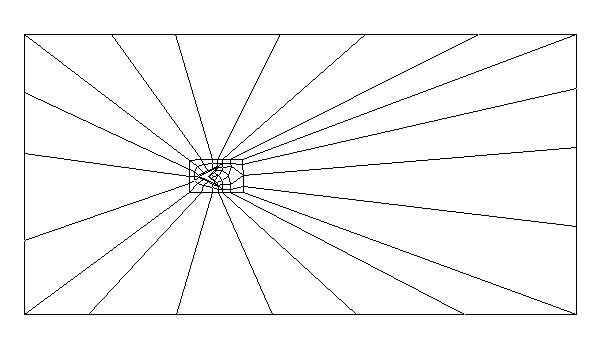

• coarse mesh (=level 1): 84 cells, 102 vertices,456 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 4: 5376 cells, 5520 vertices, 27168 d.o.f.`s
• computational mesh on level 4: 5376 cells, 5520 vertices, 27168 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.01
• equidistant time stepping for visualization with k=0.25 (= 1 frame)
• Total time T=30 corresponds to 3,000 time steps
• fractional step theta scheme

• date: 03/30/2004
• simulation by: Kandregula Srinivasa Rao
• visualization by: Kandregula Srinivasa Rao
• SUN ULTRA1/140: 2.83 MB, 1,619 seconds
• GMV data: 99.3 MB
• Software: FEATFLOW1.2 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
