Computational Details:

Study of 'Delta Wing in a Square Domain'

• squared domain of length 30
• one heated circle of radius 1.5 and located at x = 0, y =02
• inflow b.c.'s: constant velocity 1 at the left bottom edge i.e in between x=-10, y=-7.5 and x=10, y=7.7
• outflow b.c's: unknown at the right top edge i.e. in between x=20, y=-7.5 and x=20, y=7.7
• Other b.c.'s: zero velocity at the fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=1,000

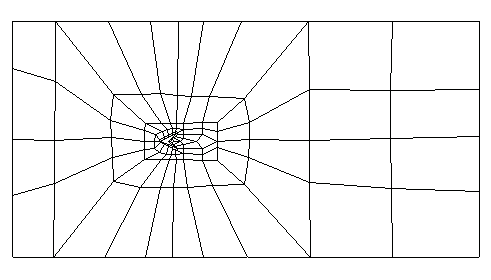

• coarse mesh (=level 1): 116 cells, 137 vertices, 628 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 4: 7424 cells, 7592 vertices, 37,456 d.o.f.`s
• computational mesh on level 4: 7424 cells, 7592 vertices, 37,456 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.01
• equidistant time stepping for visualization with k=0.25 (= 1 frame)
• Total time T=30 corresponds to 3,000 time steps
• fractional step theta scheme

• date: 03/30/2004
• simulation by: Ramalingam Naveen Kumar
• visualization by:Ramalingam Naveen Kumar
• SUN ULTRA1/140: 6.69 MB,total time= 43,681 seconds
• GMV data: 1294 MB
• Software: FEATFLOW1.2 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
