Computational Details:

'Delta Wing in a Square Domain'

• Squared domain of length 30.
• One wing plane is located at x = 0, y = 0.
• Inflow b.c.'s: constant 1 at the left i.e in between X= -10 , Y=-7.5 & X=10, Y=7.7.
• Outflow b.c.'s:  Unknown at the right i.e. in between X=10, Y0-7.5 & X=20, Y=7.7 .

• Other b.c.'s: zero velocity at the fixed walls.
• Initial condition at t=0: starting from rest.
• Viscosity parameter: 1/nu=10000.

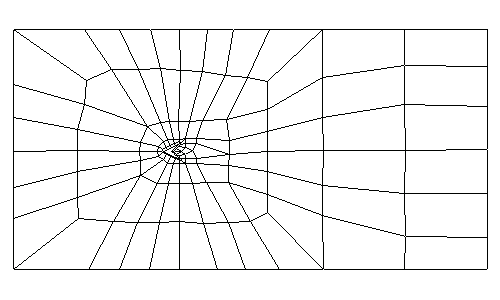

• coarse mesh (=level 1): 128 cells, 152 vertices, 688 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 5: 32768 cells, 33152 vertices, 164608 d.o.f.`s
• computational mesh on level 5: 32768 cells, 33152 vertices, 164608 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.01
• equidistant time stepping for visualization with k=0.25 (= 1 frame)
• Total time T=30 corresponds to 3,000 time steps
• fractional step theta scheme

• date: 05/07/2004
• simulation by: Madadi Kiran Reddy
• visualization by: Madadi Kiran Reddy
• SUN ULTRA1/140: 29.47 MB, 2337 seconds
• GMV data: 346.89 MB
• Software: FEATFLOW1.2 + PP2D


• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
