Flow around a car at medium Reynolds number

Flow around a car at medium Reynolds number, starting from rest. This simulation is a first pre-study of the flow behaviour for a recent BMBF project together with Daimler--Benz/Stuttgart.

• Distribution of temperature/concentration via Boussinesq model

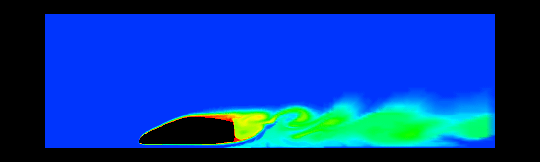

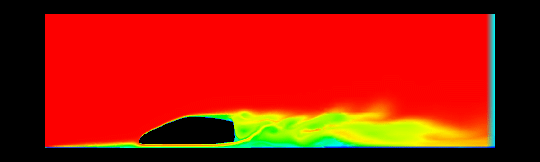

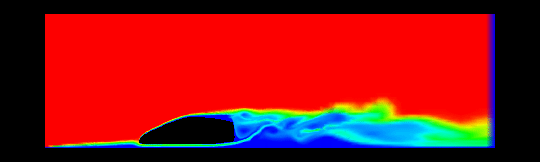

  Visualization via temperature distribution, starting from the (interior) heated shape of the car (first, second and third (as zoom), with different color maps, 2.2 MB, 2.7 MB and 3.6 MB), and via tracing of concentration, starting from the inlet (fourth and fifth, different color maps, 3.5 MB and 3.9 MB).












• Pressure

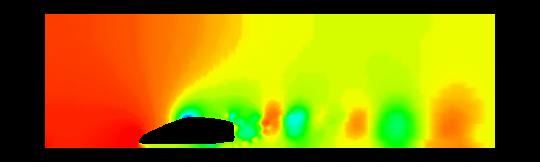

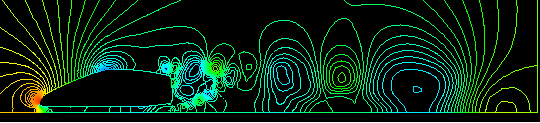

  Visualization via pressure plots, shaded (first, 2.5 MB) and via isolines (second, zoomed, 14.1 MB).






• Streamfunction

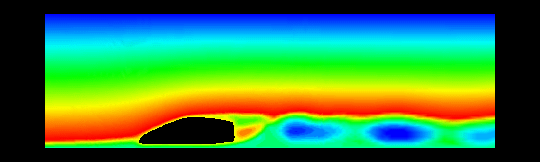

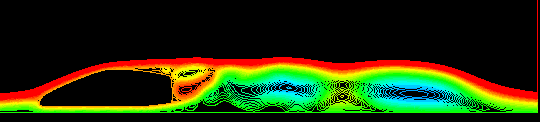

  Visualization via streamline plots, shaded (first, 2.6 MB) and via isolines (second, zoomed, 9.8 MB).






• Velocity

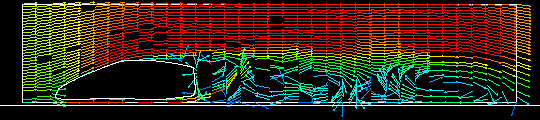

  Visualization via vector plots (vectors, 6.4 MB) in a zoomed area.
