(Regularized) Driven Cavity (III) at low Reynolds number with interior circle

(Regularized) Driven Cavity calculation in a square of height and width 3, starting from rest. We only prescribe inhomogeneous boundary data at the top and bottom. For the underlying Reynolds number, Re=250, the observed flow gets steady. This simulation is part of a Software-Praktikum at the University of Heidelberg in 1997, with the aim to comparethe different Driven Cavity configurations. See the corresponding different pages in the 'Virtual Album'.

• Distribution of temperature/concentration via Boussinesq model

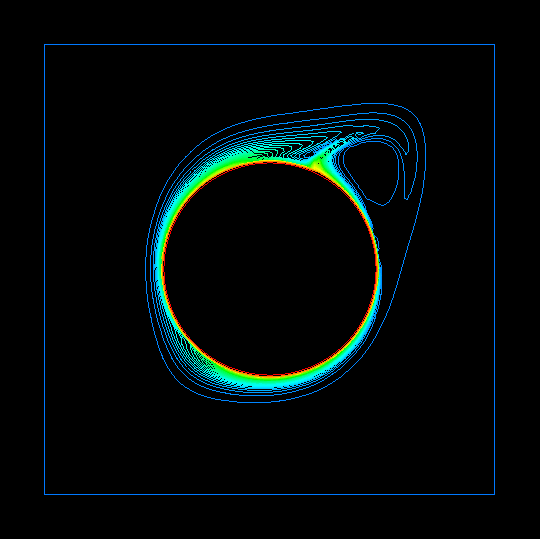

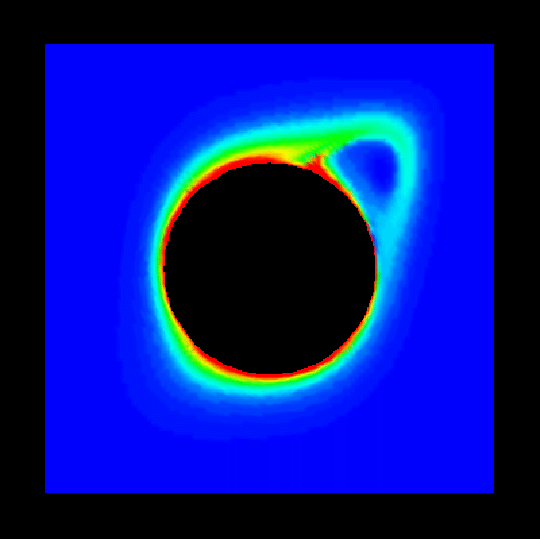

  Visualization via temperature distribution from the heated walls, shaded (first, 1.2 ) and via isolines (second 1.2 MB)






• Pressure

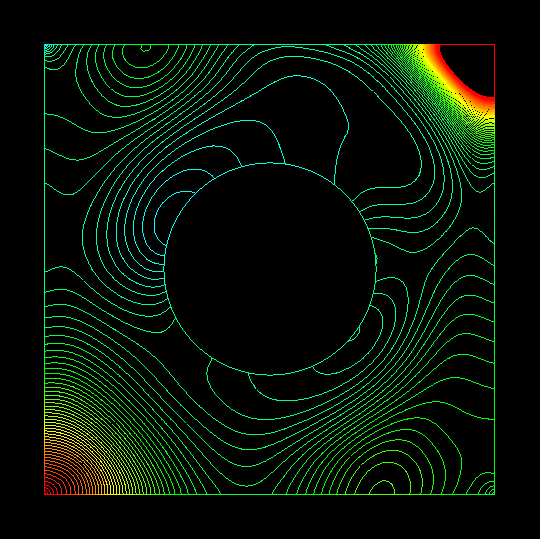

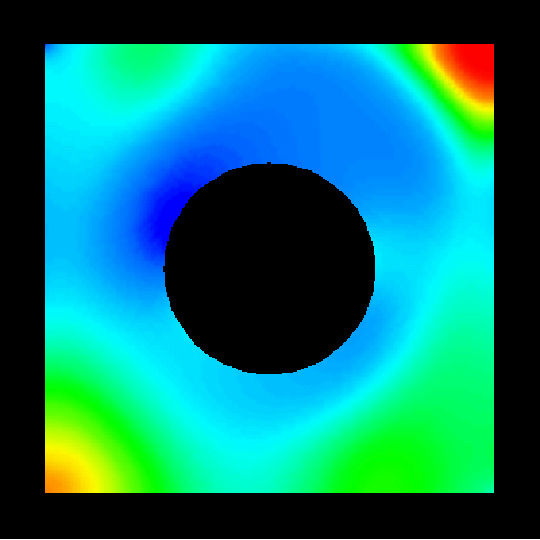

  Visualization via pressure plots, shaded (first, 1.3 MB) and via isolines (second, 3.5 MB).






• Streamfunction

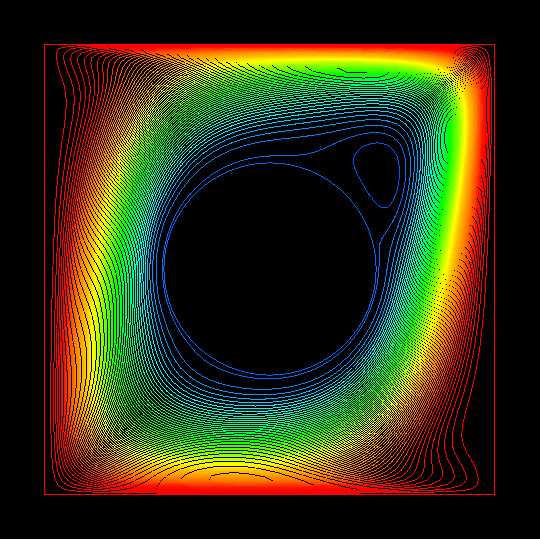

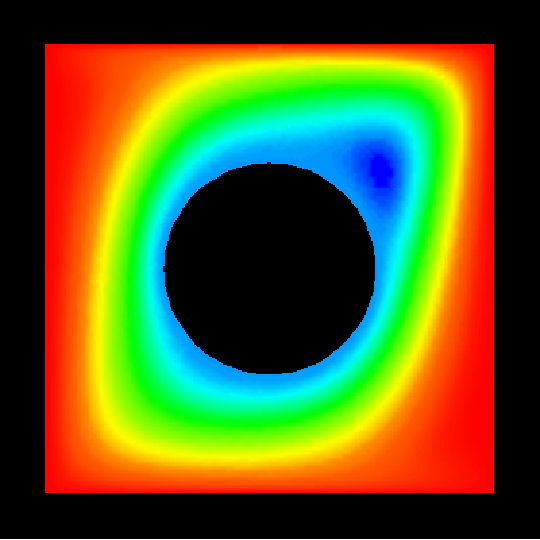

  Visualization via streamline plots, shaded (first, 1.4 MB) and via isolines (second, 4.7 MB).






• Velocity



  Visualization via vector plots (vectors, 2.5 MB).
