(Regularized) Driven Cavity (III) at low Reynolds number with interior square

(Regularized) Driven Cavity calculation in a rectangle of height 3 and width 3, starting from rest. We only prescribe inhomogeneous boundary data at the top and the bottom. For the performed Reynolds number, Re=250, the observed flow gets steady. This simulation is part of a Software-Praktikum at the University of Heidelberg in 1997, with the aim to compare different Driven Cavity configurations. See the corresponding pages in the 'Virtual Album'.

• Distribution of temperature/concentration via Boussinesq model

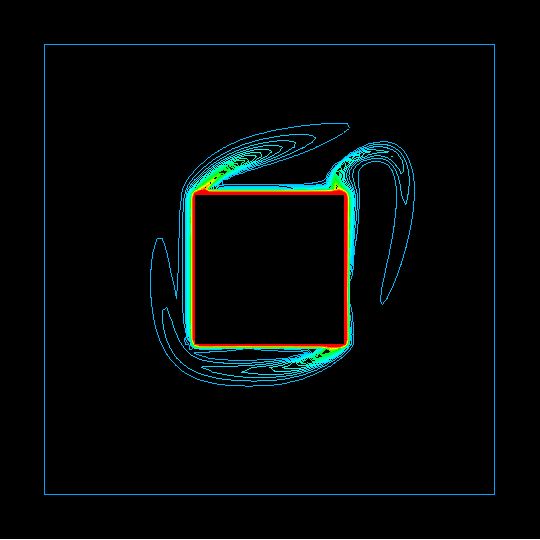

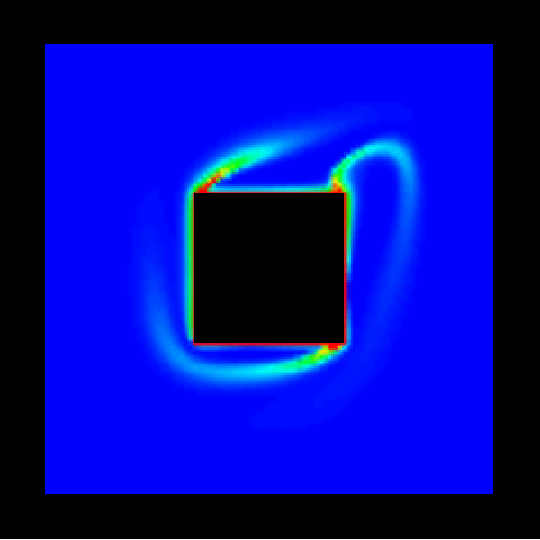

  Visualization via temperature distribution from the heated square, shaded (first, 0.9MB) and via isolines (second, 1.9 MB).






• Pressure

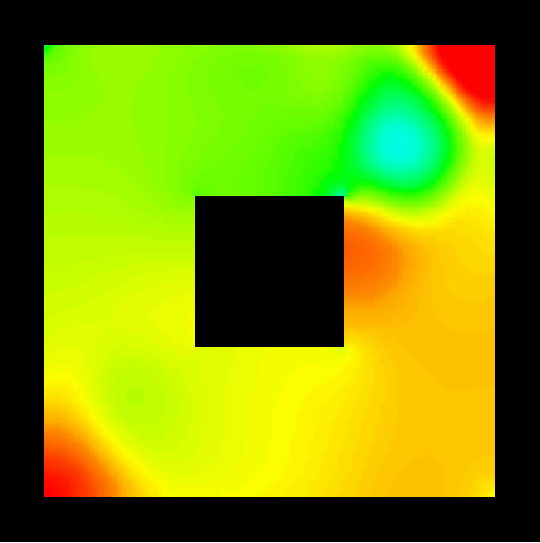

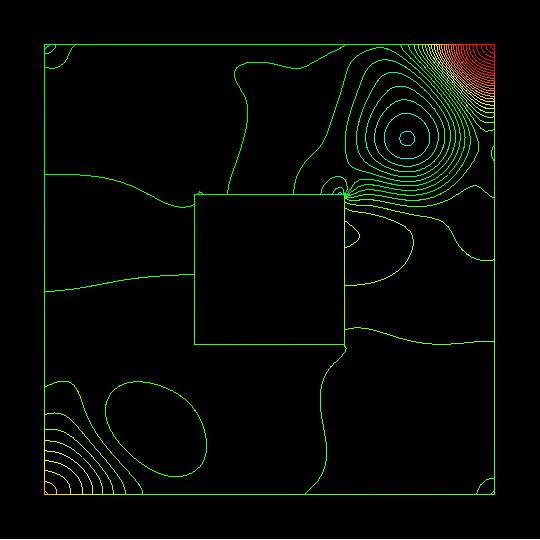

  Visualization via pressure plots, shaded (first, 0.6 MB) and via isolines (second, 3.4 MB).






• Streamfunction

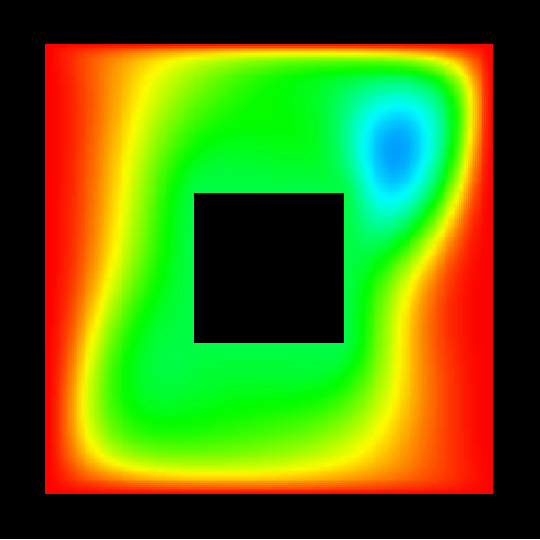

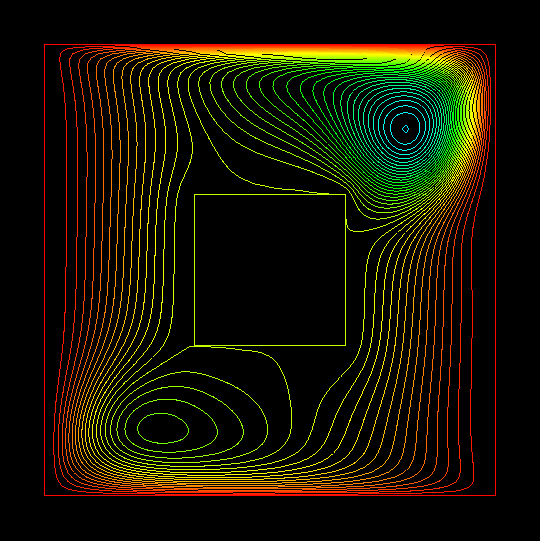

  Visualization via streamline plots, shaded (first, 0.7 MB) and via isolines (second, 5.1 MB).






• Velocity

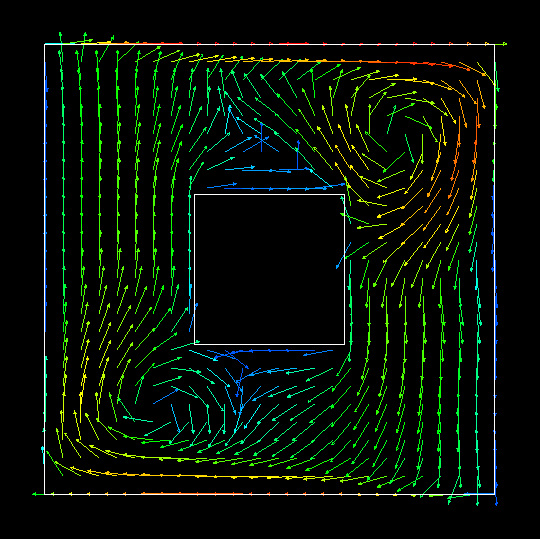

  Visualization via vector plots (vectors, 3.5 MB).
