(Regularized) Driven Cavity (I) at medium Reynolds number with interior square

(Regularized) Driven Cavity calculation in a square of height and width 3. We only prescribe inhomogeneous boundary data at the top. For the underlying Reynolds number, the observed flow gets nonsteady. This simulation is part of a Software-Praktikum at the University of Heidelberg in 1997, with the aim to compare different Driven Cavity configurations. See the corresponding pages in the 'Virtual Album'.

• Distribution of temperature/concentration via Boussinesq model

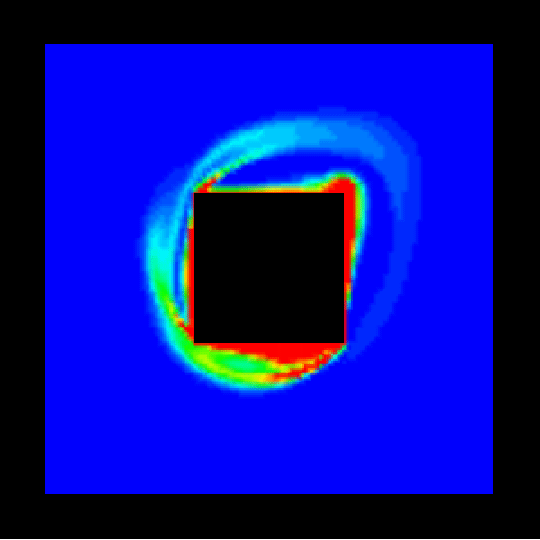

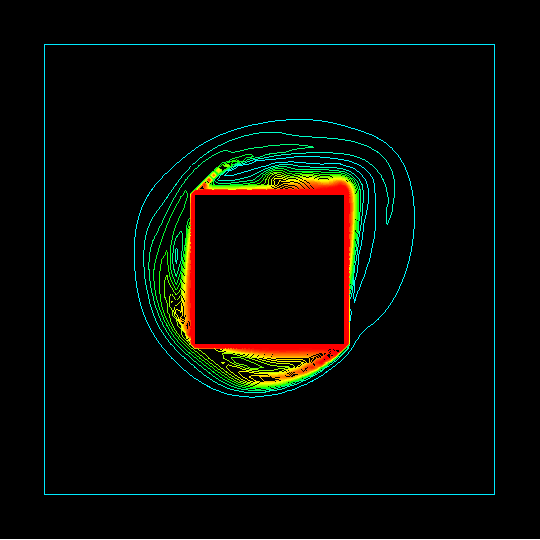

  Visualization via temperature distribution from the heated square, shaded (first, 1.2 MB) and via isolines (second, 2.1 MB).






• Pressure

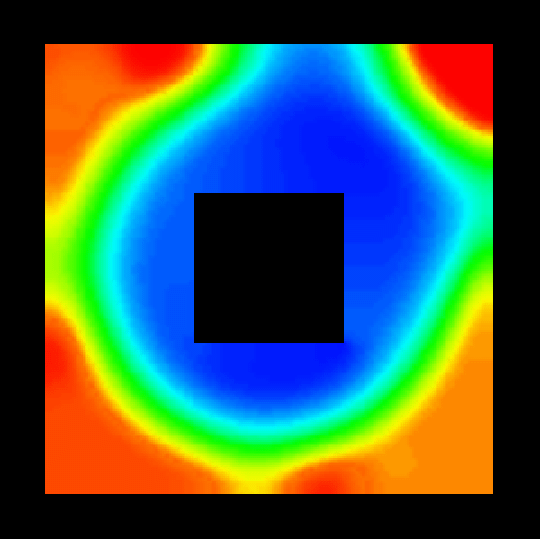

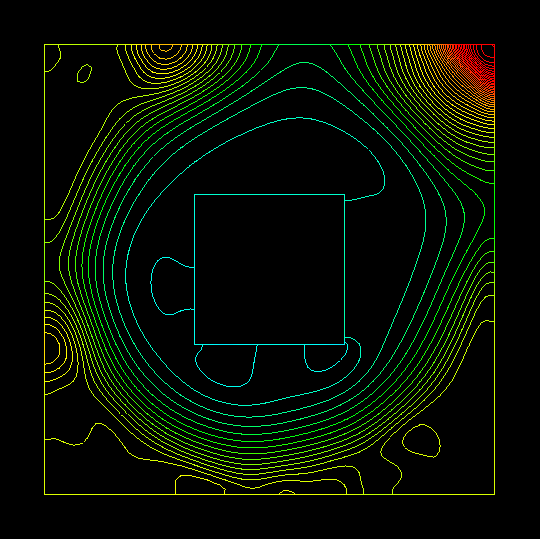

  Visualization via pressure plots, shaded (first,1.6 MB) and via isolines (second, 2.4 MB).






• Streamfunction

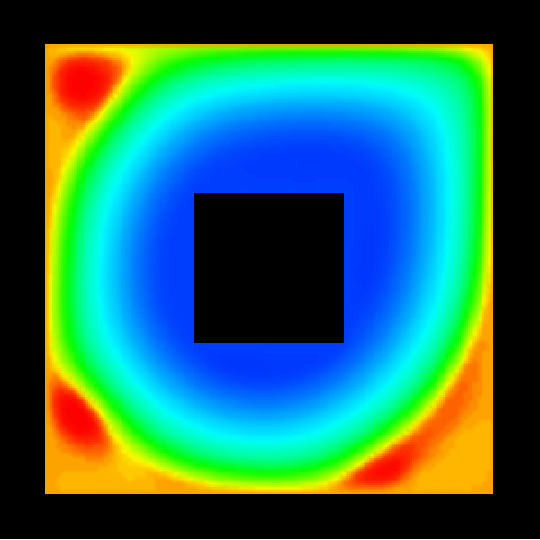

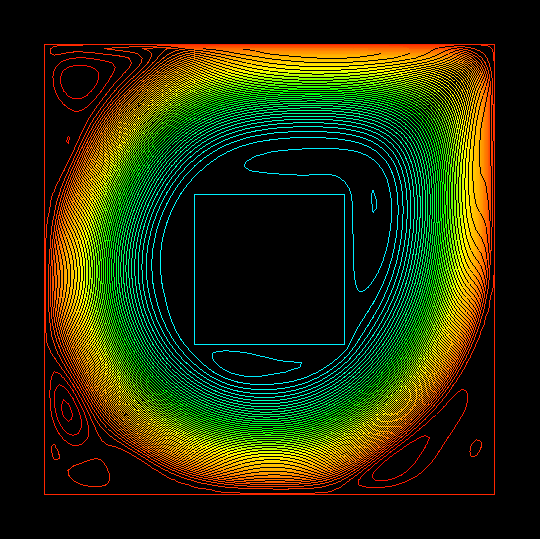

  Visualization via streamline plots, shaded (first, 1.4 MB) and via isolines (second, 2.1 MB).






• Velocity

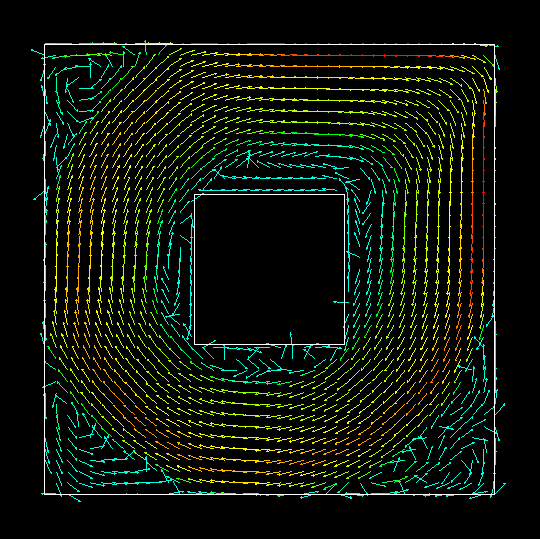

  Visualization via vector plots (vectors, 1.7 MB).
