Computational Details:

"(Regularized) Driven Cavity (I) at low Reynolds number with 2 interior circles"

• rectangular domain of height 3 and width 5 with two interior circles
• Dirichlet b.c.'s: parabolic u-velocity profile with maximum value of 1 at the top
• other b.c.'s: zero velocity at fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=250

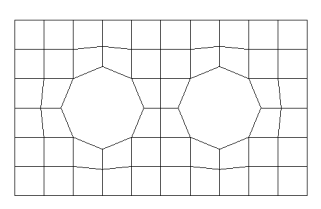

• coarse mesh (=level 2): 52 cells, 75 vertices, 308 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 6: 13,312 cells, 13,695 vertices, 67,328 d.o.f.`s
• computational mesh on level 7: 53,248 cells, 54,015 vertices, 267,776 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.083333
• equidistant time stepping for visualization with k=0.25 (= 1 frame)
• Total time T=100 seconds corresponds to 1,200 time steps
• fractional step theta scheme

• date: 12/16/97
• simulation by: M.Bundschuh
• visualization by: M.Bundschuh
• SUN ULTRA1/140: 42 MB, 27,255 seconds
• AVS data: 869 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
