Computational Details:

"(Regularized) Driven Cavity (II) at low Reynolds number with 2 interior circles"

• rectangular domain of height 3 and width 5 with with two interior circles
• Dirichlet b.c.'s: parabolic u-velocity profile with maximum value of 1 at the top and maximum value of 0.5 at the bottom
• other b.c.'s: zero velocity at fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=250

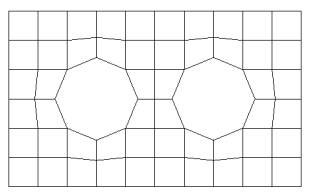

• coarse mesh (=level 2): 52 cells, 75 vertices, 308 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 6: 13,312 cells, 13,695 vertices, 67,328 d.o.f.`s
• computational mesh on level 7: 53,248 cells, 54,015 vertices, 267,776 d.o.f.`s
nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.083333334
• equidistant time stepping for visualization with k=0.25 (= 1 frame)
• Total time T=100 seconds corresponds to 1,200 time steps
• fractional step theta scheme

• date: 30/06/98
• simulation by: Chr.Bertsch
• visualization by: Chr.Bertsch
• SUN ULTRA1/170: 42 MB, 27,127 seconds
• AVS data: 886 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
