(Regularized) Driven Cavity (III) at medium Reynolds number with 2 interior circles

(Regularized) Driven Cavity calculation in a rectangle of height 3 and width 5 with 2 interior circles. We only prescribe inhomogeneous boundary data at the top and bottom. For the performed Reynolds number, Re=20,000, the observed flow gets nonsteady. This simulation is part of a Software-Praktikum at the University of Heidelberg in 1997, with the aim to compare different Driven Cavity configurations. See the corresponding pages in the 'Virtual Album'.

• Distribution of temperature/concentration via Boussinesq model

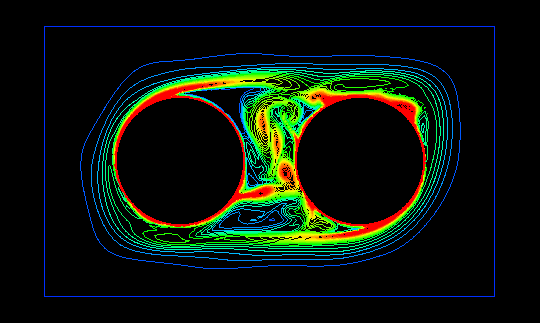

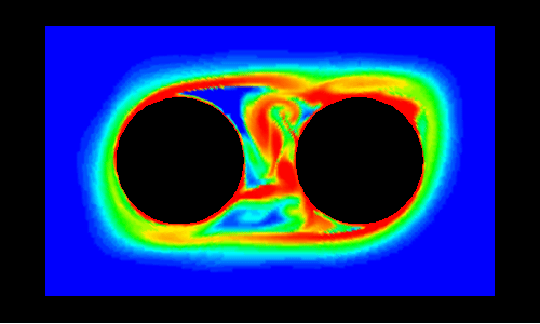

  Visualization via temperature distribution from the heated walls, shaded (first, 2.5 MB) and via isolines (second, 5.4 MB)






• Pressure

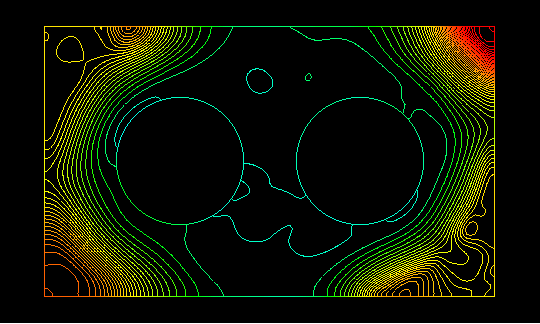

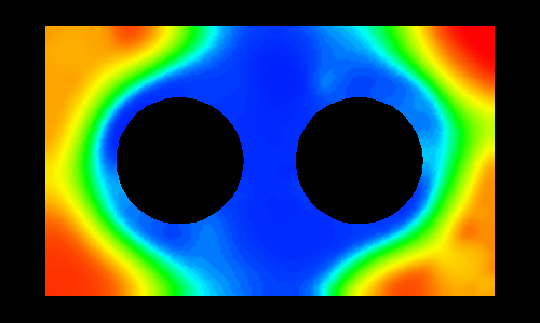

  Visualization via pressure plots, shaded (first, 2.4 MB) and via isolines (second, 7.9 MB).






• Streamfunction

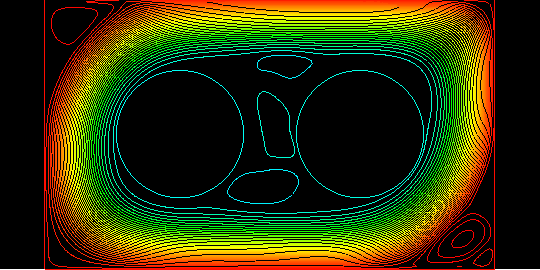

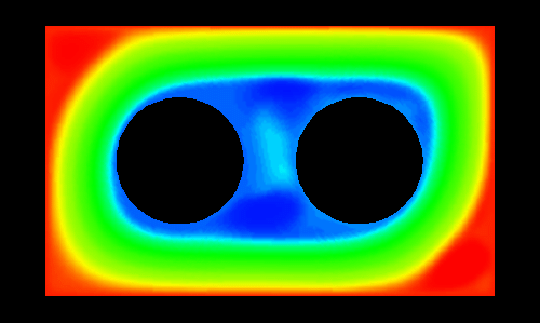

  Visualization via streamline plots, shaded (first, 2.2 MB) and via isolines (second, 4 MB).






• Velocity

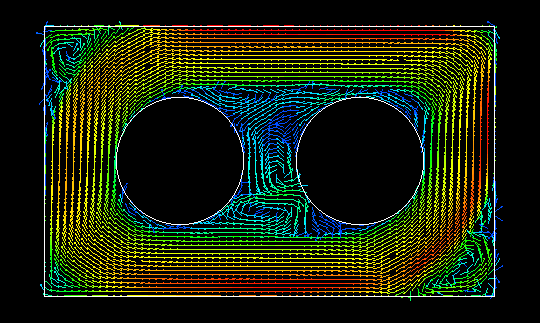

  Visualization via vector plots (vectors, 6 MB).
