Description of the flow problem
-
diameter of the circle: 2
-
rotational speed 1 (counterclockwise) on the circle
(tangential speed)
-
other b.c.'s: zero velocity at the characters
-
initial condition at t=0: starting fully developed
-
viscosity parameter: 1/nu=1,000,000
|
|
|
Description of the spatial discretization
-

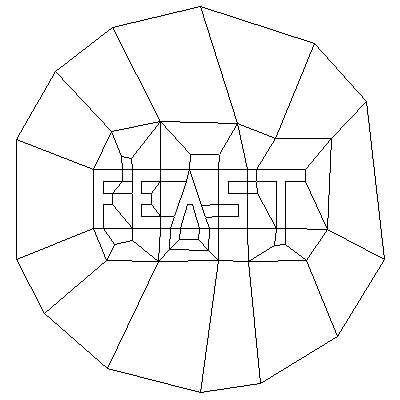

coarse mesh (=level 1): 62 cells, 92 vertices, 378 d.o.f.'s
-
uniform refinements with exact boundary adaption
-
visualization on level 6: 63,488 cells, 64,572 vertices,
319,616 d.o.f.`s
-
computational mesh on level 7: 253,952 cells, 256,124 vertices,
1,274,112 d.o.f.`s
-
nonconforming nonparametric rotated bilinear fem's (meanvalue
version), UPW
|
|
|
Description of the temporal discretization
-
equidistant time stepping for computation with k=0.011111112
-
equidistant time stepping for visualization with k= 0.1 (= 1
frame)
-
Total time T= 20 seconds corresponds to
1,800 time steps
-
fractional step theta scheme
|
|
|
Computer requirements
-
date: 11/26/98
-
simulation by: J.F.Acker/S.Turek
-
visualization by: J.F.Acker
-
SUN E450/250MHZ 210 MB, 178,734 seconds
-
GMV data: 1,840 MB
-
Software: FEATFLOW1.1 (BOUSS)
|
|
|
Mathematical details
-
For more details about numerical and algorithmic aspects see the
`Mathematical Background' in the
FEATFLOW manual
or
visit our
paper archive for much more details.
-
The problem-specific data for the applied software version
including parameter files and
input data can be downloaded
here!
|
|
