Channel flows over a hill at different Reynolds numbers

This simulation shows the flow through a channel in which a hill is located. The configuration is very similar to the proposed `turbulent benchmark' which can be found at

http://www.featflow.de/bench_turb/bmtext.html .

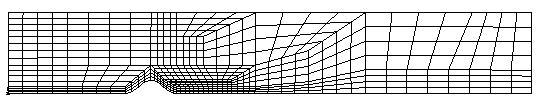

The flow tends to some steady behaviour (medium Re case), while it seems to be fully nonsteady for the high Reynolds number case. The corresponding coarse mesh (after two refinements) for all calculations is plotted in the following diagram. For a detailed description of the simulated flow configurations look at the corresponding pages in the `Virtual Album'.

• Distribution of temperature/concentration via Boussinesq model



  Visualization via distribution of temperature in the flow field, starting from the heated walls (maximum size of 3.8 MB). We show the results for the medium (first) and the high Reynolds number case (second).










• Pressure



  Visualization via pressure plots, shaded (maximum size of 4.4 MB).










• Streamfunction



  Visualization via streamline plots, shaded (maximum size of 3 MB).










• Velocity



  Visualization via vector plots (maximum size of 9.6 MB).
