Computational Details:

"Flow around a truck (with wind shield and cargo, street version) at low Reynolds number"

• length of domain: 4.8; height of domain: 1.98
• length of truck: 0.6; height of truck: 0.36; distance to street: 0.06
• inflow b.c.'s: constant with (maximum) velocity 1 at the left edge and at the upper wall
• outflow b.c.'s: natural "do nothing" b.c.'s
• other b.c.'s: zero velocity at fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=50

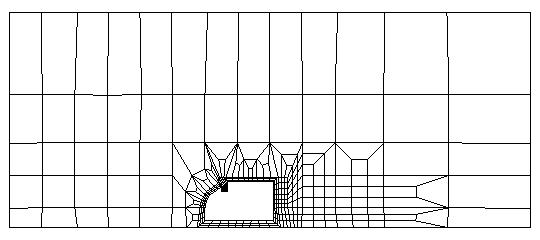

• coarse mesh (=level 1): 351 cells, 403 vertices, 1,859 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 4: 22,464 cells, 22,880 vertices, 113,152 d.o.f.`s
• computational mesh on level 5: 89,856 cells, 90,688 vertices, 450,944 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.01111112
• equidistant time stepping for visualization with k=0.1 (= 1 frame)
• Total time T=20 corresponds to 1,800 time steps
• fractional step theta scheme

• date: 11/07/97
• simulation by: S.Turek/A.Runge/A.Wild
• visualization by: S.Turek
• SGI PowerIndigo2/10K: 75 MB, 56,315 seconds
• AVS data: 740 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
