Flow around a truck (without wind shield, with cargo, street version) at low Reynolds number

Flow around a truck at low Reynolds number, starting from rest. This simulation is part of a comparative study (by students during the FEATFLOW Praktikum 1995/96 at Heidelberg) with the aim to figure out the influence of the wind shield on the top of the truck, for different configurations. See the results for the higher Reynolds number situations.

• Distribution of temperature/concentration via Boussinesq model

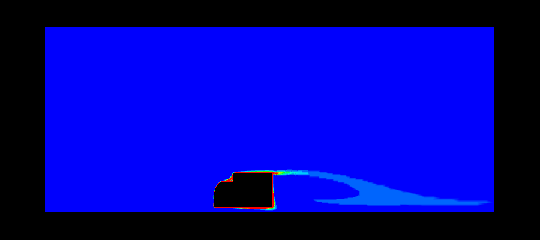

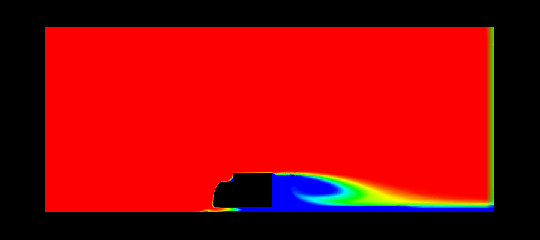

  Visualization via tracing of concentration, starting from the inlet (first, 0.9 MB), and via temperature distribution, starting from the (interior) heated shape of the truck (second, 0.8 MB).






• Pressure

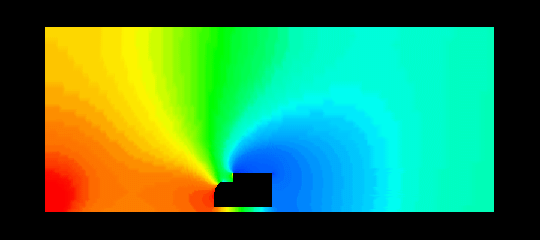

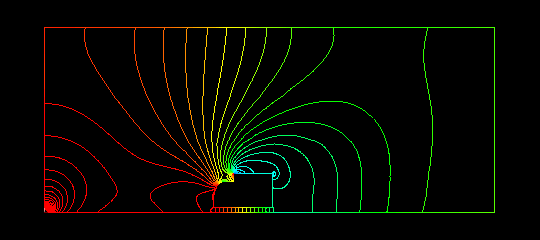

  Visualization via pressure plots, shaded (first, 0.5 MB) and via isolines (second, 2.4 MB).






• Streamfunction

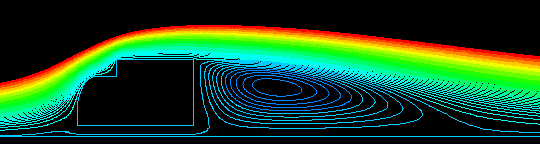

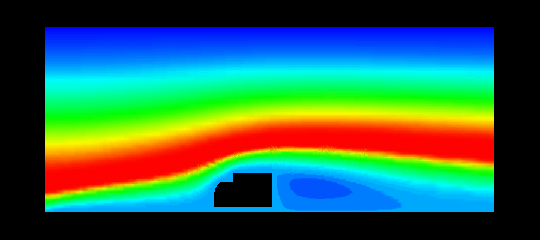

  Visualization via streamline plots, shaded (first, 0.6 MB) and via isolines (second, zoomed, 2.2 MB).






• Velocity

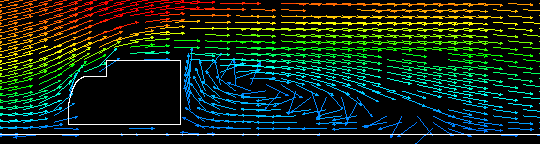

  Visualization via vector plots (vectors, 3.0 MB) in a zoomed area.
