Computational Details:

"Flow around a truck (without wind shield, but with cargo, street version) at medium Reynolds number"

• length of domain: 4.8; height of domain: 1.98
• length of truck: 0.6; height of truck: 0.36; distance to street: 0.06
• inflow b.c.'s: constant with (maximum) velocity 1 at the left edge and at the upper wall
• outflow b.c.'s: natural "do nothing" b.c.'s
• other b.c.'s: zero velocity at fixed walls
• initial condition at t=0: starting from fully developed
• viscosity parameter: 1/nu=100,000

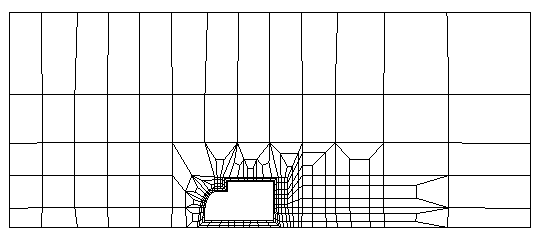

• coarse mesh (=level 1): 339 cells, 388 vertices, 1,793 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 4: 21,696 cells, 22,088 vertices, 109,264 d.o.f.`s
• computational mesh on level 6: 347,136 cells, 348,704 vertices, 1,738,816 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.0033333
• equidistant time stepping for visualization with k=0.066666 (= 1 frame)
• Total time T=10 corresponds to 3,000 time steps
• fractional step theta scheme

• date: 11/27/97
• simulation by: S.Turek/A.Runge/A.Wild
• visualization by: S.Turek
• SGI PowerIndigo2/10K: 285 MB, 468,124 seconds
• AVS data: 590 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
