Computational Details:

"Flow around a truck (with wind shield and cargo, `flying' version) at medium Reynolds number"

• length of domain: 4.8; height of domain: 3.6
• length of truck: 0.6; height of truck: 0.36
• inflow b.c.'s: constant with (maximum) velocity 1 at the left edge and at the upper and lower wall
• outflow b.c.'s: natural "do nothing" b.c.'s
• other b.c.'s: zero velocity at fixed walls
• initial condition at t=0: starting from fully developed
• viscosity parameter: 1/nu=100,000

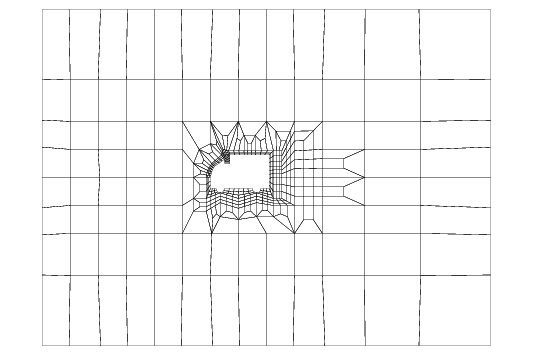

• coarse mesh (=level 1): 453 cells, 507 vertices, 2,373 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 4: 28,992 cells, 29,424 vertices, 145,824 d.o.f.`s
• computational mesh on level 6: 463,872 cells, 465,600 vertices, 2,322,816 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.0033334
• equidistant time stepping for visualization with k=0.05 (= 1 frame)
• Total time T=10 corresponds to 3,000 time steps
• fractional step theta scheme

• date: 11/05/97
• simulation by: S.Turek/A.Runge/A.Wild
• visualization by: S.Turek
• IBM RS6000/590: 380 MB, 408,786 seconds
• AVS data: 850 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
