Description of the flow problem
-
length/width of channel: 14/3
-
diameter of circles : 0.5
-
maximum vertical speed of circles : +/-0.5
-
Dirichlet b.c.'s on circle surface (= differentiation of the
circle speed)
-
Dirichlet b.c.'s for right inflow with parabolic profile of
order 1
-
natural b.c.'s on the right edge
-
other b.c.'s: zero velocity at walls of the channels
-
initial condition at t=0: starting from rest
-
viscosity parameter: 1/nu=100
|
|
|
Description of the spatial discretization
-

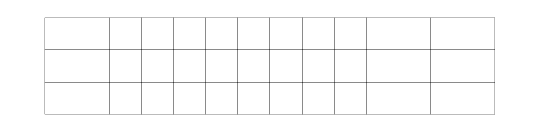

coarse mesh (=level 1): 33 cells, 48 vertices, 193 d.o.f.`s
-
same tensor product mesh for ALL TIME STEPS !!!
-
visualization on level 5: 8,448 cells, 8,673 vertices, 42,688
d.o.f.`s
-
computation on level 6: 33,792 cells, 34,241 vertices,
169,856 d.o.f.`s
-
nonconforming nonparametric rotated bilinear fem's (meanvalue
version), UPW
|
|
|
Description of the temporal discretization
-
equidistant time stepping for computation with k=0.0066667
-
equidistant time stepping for visualization with k= 0.04 (= 1
frame)
-
Total time T=10 seconds corresponds to
1,500 time steps
-
fractional step theta scheme
|
|
|
Computer requirements
-
date: 04/19/98
-
simulation by: S.Turek
-
visualization by: S.Turek
-
SUN ULTRA 45/250: 26 MB, 263,962 seconds
-
AVS data: 350 MB
-
Software: FEATFLOW1.1 + CC2D_MOVBC
|
|
|
Mathematical details
-
For more details about numerical and algorithmic aspects see the
`Mathematical Background' in the
FEATFLOW manual
or
visit our
paper archive for much more details.
-
The problem-specific data for the applied software version
including parameter files and
input data can be downloaded
here!
|
|
