Computational Details:

"Flow around the `GLW` characters (Leonid W. Granatstein) at medium Reynolds number"

• diameter of the circle: 2
• rotational speed 1 (counterclockwise) on the circle (tangential speed)
• other b.c.'s: zero velocity at the characters
• initial condition at t=0: starting fully developed
• viscosity parameter: 1/nu=1,000,000

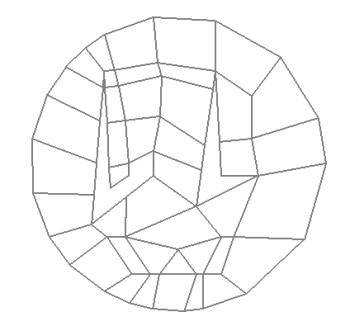

• coarse mesh (=level 1): 38 cells, 62 vertices, 248 d.o.f.'s






• uniform refinements with exact boundary adaption
• visualization on level 6: 38,912 cells, 39,835 vertices, 196,416 d.o.f.`s
• computational mesh on level 7: 155,648 cells, 157,499 vertices, 781,952 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.0222223
• equidistant time stepping for visualization with k= 0.2 (= 1 frame)
• Total time T= 50 seconds corresponds to 2,250 time steps
• fractional step theta scheme

• date: 12/16/98
• simulation by: L. Granatstein/J.F.Acker/L.Rivkind/S.Turek
• visualization by: L. Granatstein
• SUN ULTRA 1/143MHZ 133 MB, 120,119 seconds
• GMV data: 1,419 MB
• Software: FEATFLOW1.1 (BOUSS)

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
