Computational Details:

"Flow around the `TAAY' characters (A. Taylor) at medium Reynolds number"

• diameter of the circle: 2
• rotational speed 1 (counterclockwise) on the circle (tangential speed)
• other b.c.'s: zero velocity at the characters
• initial condition at t=0: starting fully developed
• viscosity parameter: 1/nu=1,000,000

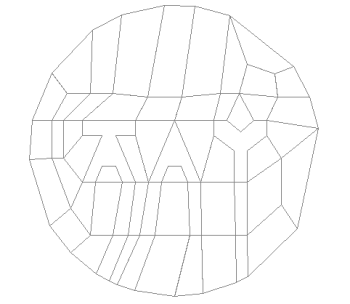

• coarse mesh (=level 1): 54 cells, 78 vertices, 346 d.o.f.'s






• uniform refinements with exact boundary adaption
• visualization on level 5: 13,824 cells, 14,238 vertices, 69,952 d.o.f.`s
• computational mesh on level 5: 55,296 cells, 56,126 vertices, 278,144 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.022222223
• equidistant time stepping for visualization with k= 0.2 (= 1 frame)
• Total time T= 50 seconds corresponds to 2,250 time steps
• fractional step theta scheme

• date: 01/26/99
• simulation by: A.Taylor/L.Rivkind/S.Turek
• visualization by: L.Rivkind
• SUN ULTRA1/140MHZ 47 MB, 42,311 seconds
• GMV data: 510 MB
• Software: FEATFLOW1.1 (BOUSS)

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
