Flow around the `ULI` characters (Ulrich Felzmann) at high Reynolds number

Flow around 'ULI' characters in a circle with (outer) fixed rotational speed at high Reynolds number. This simulation has been part of the Software-Praktikum WS98/99 at Heidelberg.

• Distribution of temperature/concentration via Boussinesq model

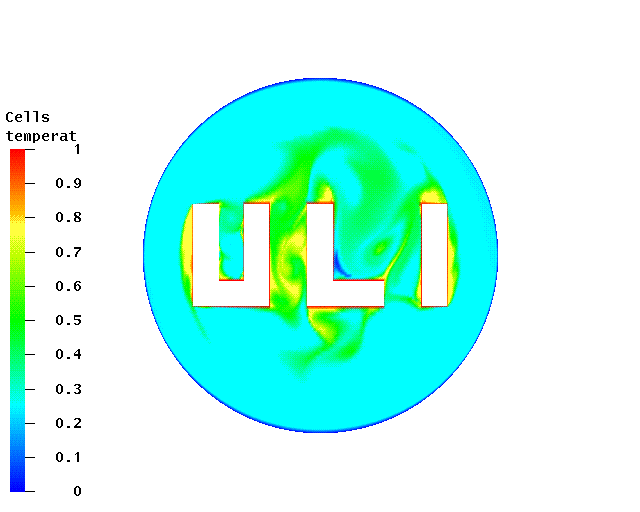

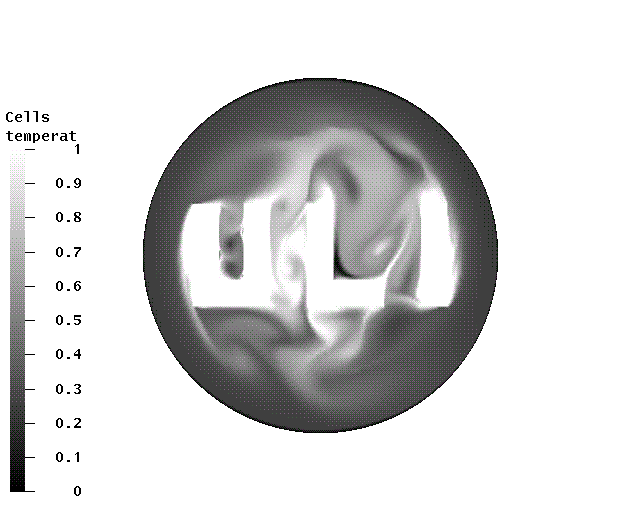

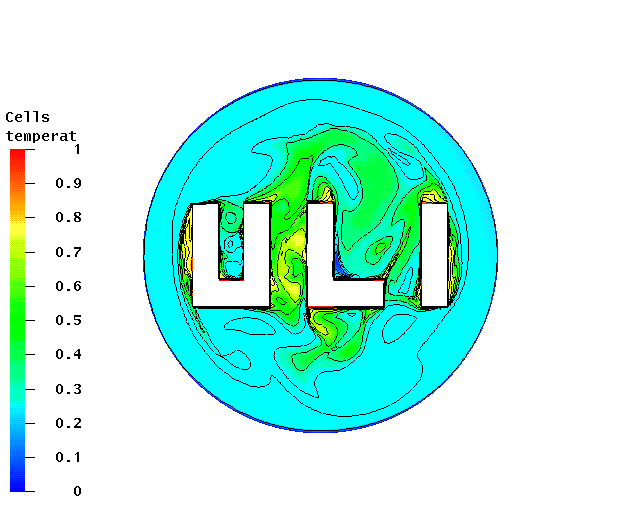

  Visualization via temperature distribution, starting from the (interior) heated shape of the characters, first shaded with isolines, second shaded only and third grey-shaded (each 1.0 MB) .






• Pressure

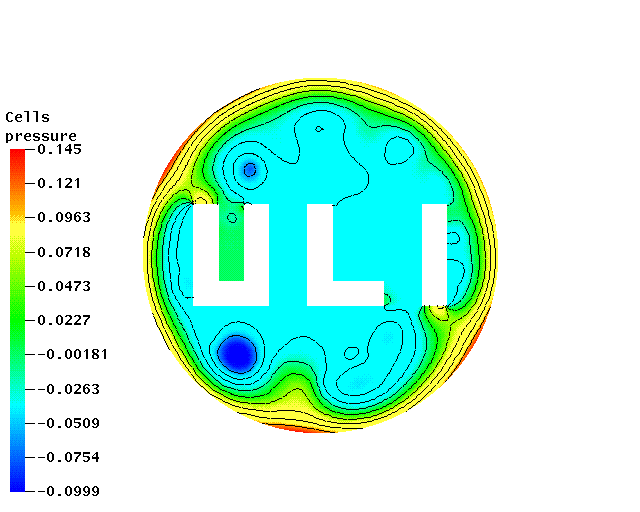

  Visualization via pressure plots, shaded with isolines (1.0 MB).






• Streamfunction

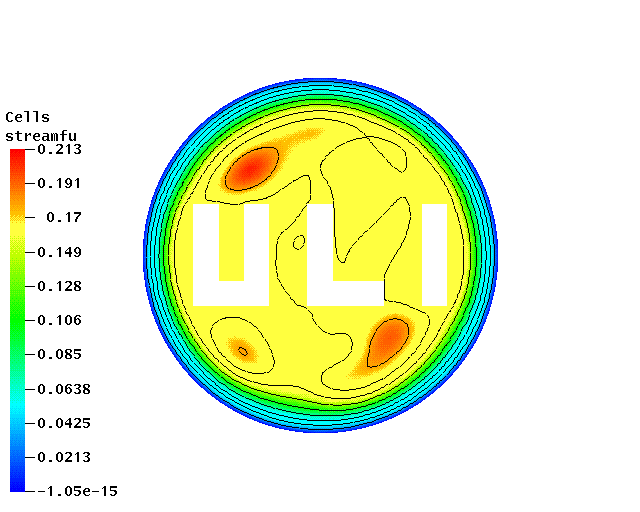

  Visualization via streamline plots, shaded with isolines (1.0 MB).






• Velocity

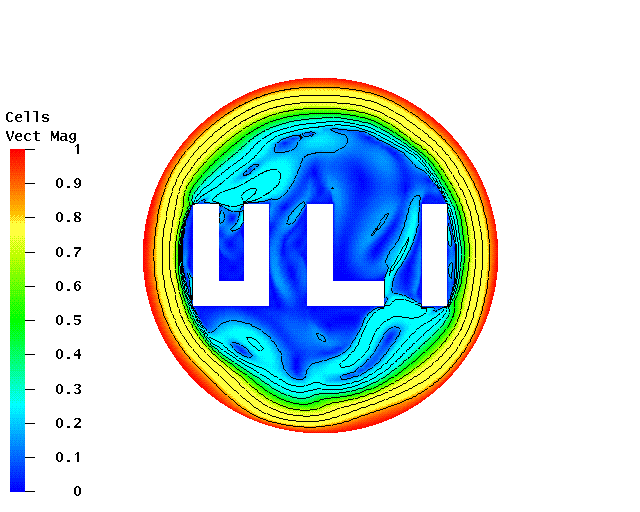

  Visualization via (norm of) velocity plots, shaded with isolines (1.0 MB).
