Leapfrogging of 2 smoke rings (different speed) at low Reynolds number


Computational details
Short description and remarks
Visualization




Short description and remarks


Two smoke rings are driven by given pressure drops from left to right, while at other times the external forces for driving the flow are almost in equilibrium. The second "puff" reaches and almost penetrates the first one which also accelerates during this game: both chase each other! The main problem with visualizing this dynamic behaviour is due to the dominant diffusive terms. While "absolute" quantities as pressure, streamfunction and velocity plots do not show the physical movement, only tracing of concentration may provide some helpful illustration. However, due to the strong diffusion, we had to rescale the concentration in each step which explains the "funny colors" and the "funny structure" of the smoke rings. For this kind of flow simulation, definitively a particle tracing is the best visualization tool!!!


Visualization

  • Distribution of temperature/concentration via Boussinesq model

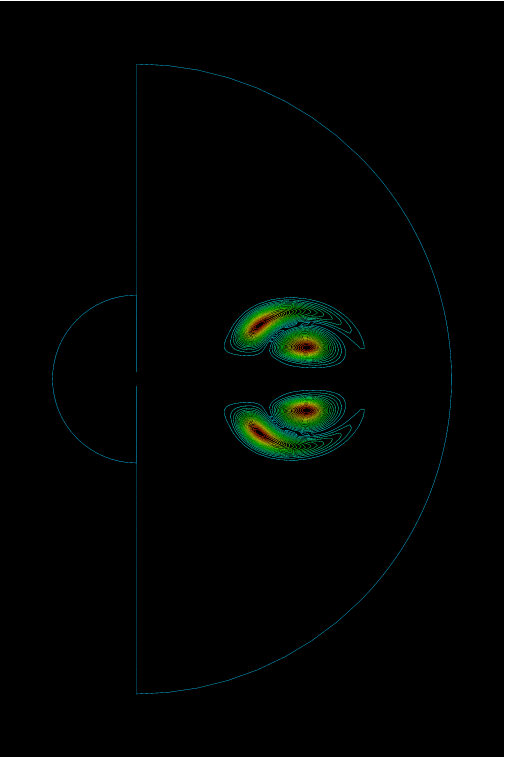

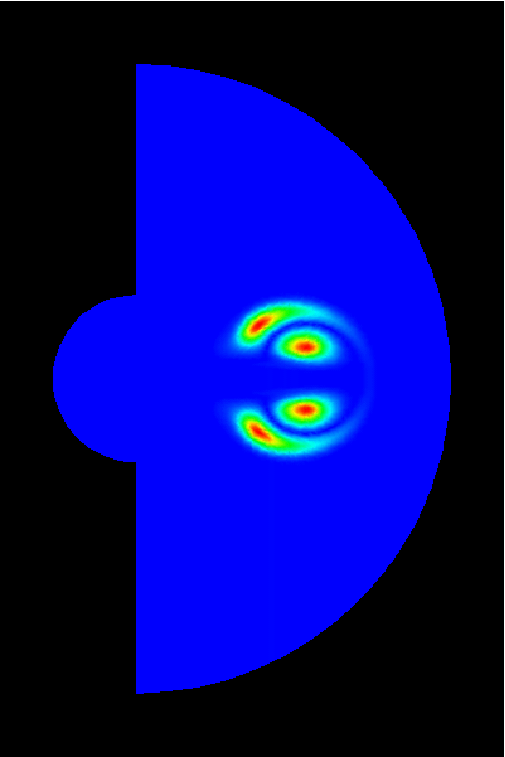

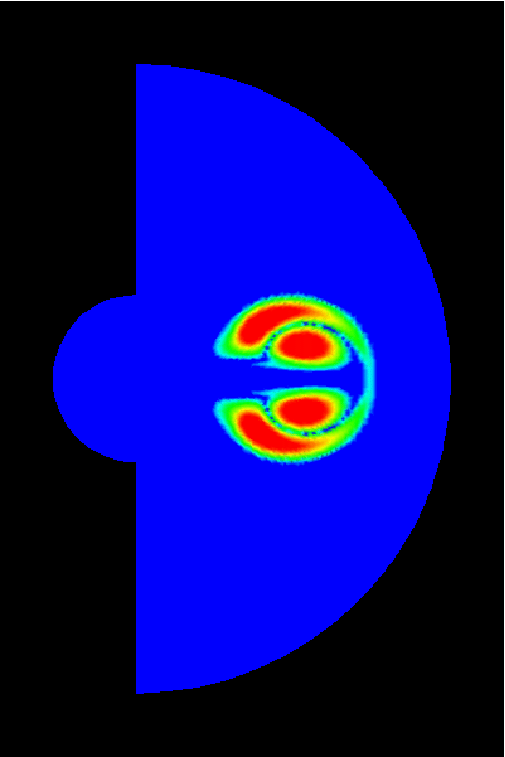

    Visualization via tracing of concentration, starting from the small hole in the interior wall which separates both semi-circles. We show two shaded results with different color maps (0.8 MB and 1.1 MB) and with isolines (2.1 MB).

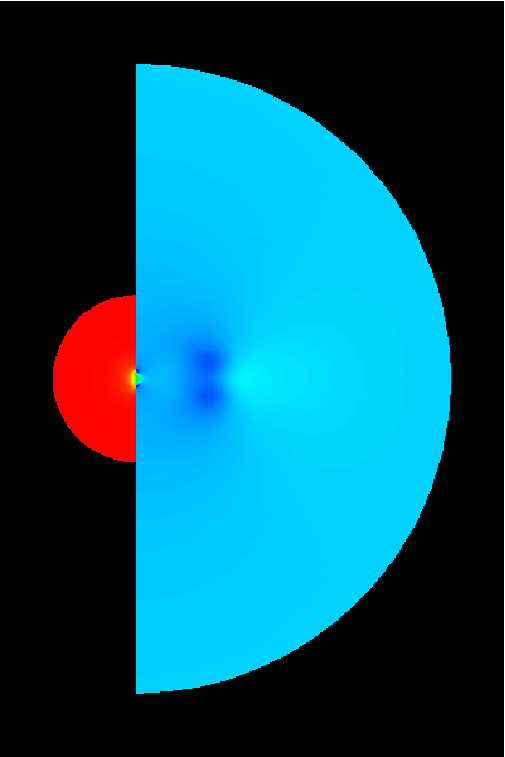

  • Pressure

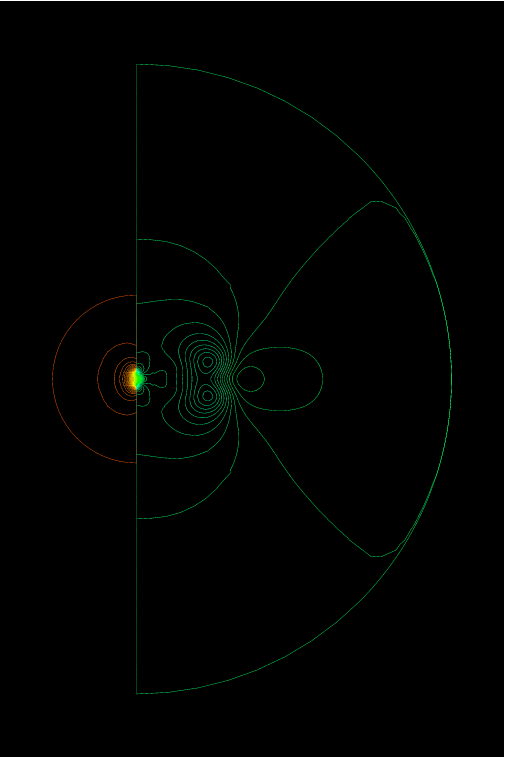

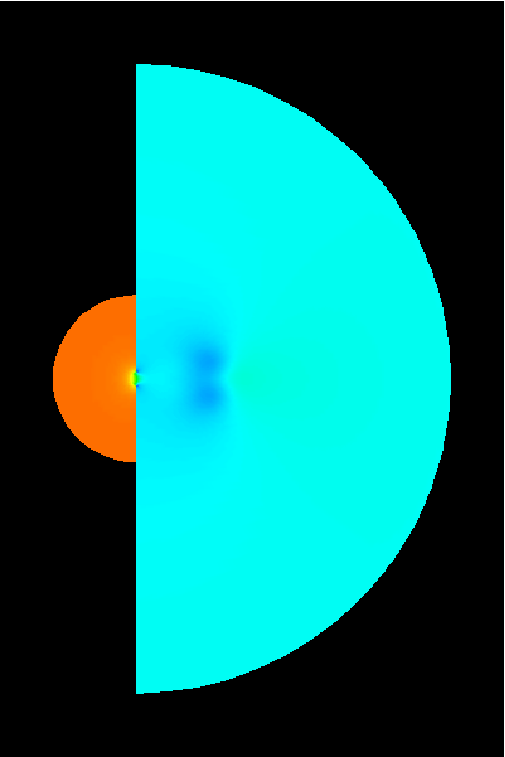

    Visualization via shaded pressure plots (first with adaptive range 1.1 MB and second with fixed range 0.9 MB) and via isolines (third, 2.2 MB).

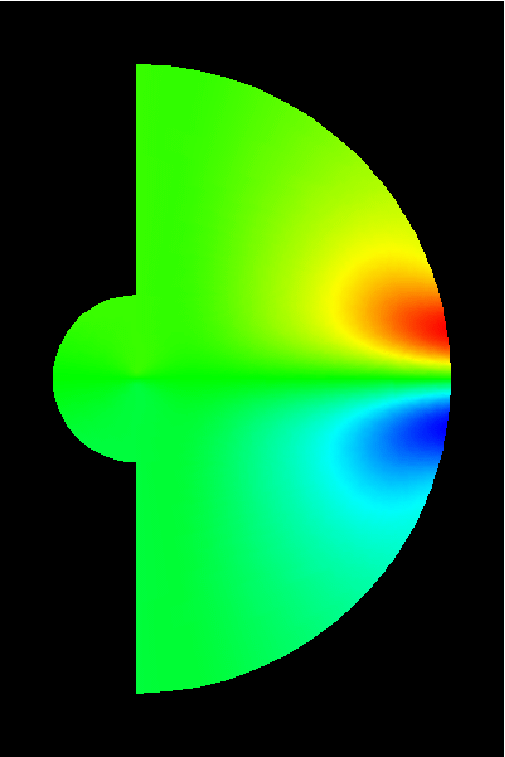

  • Streamfunction

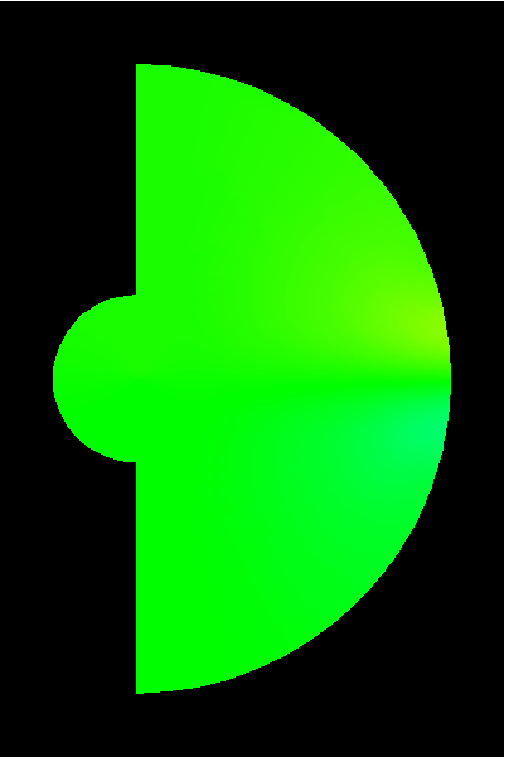

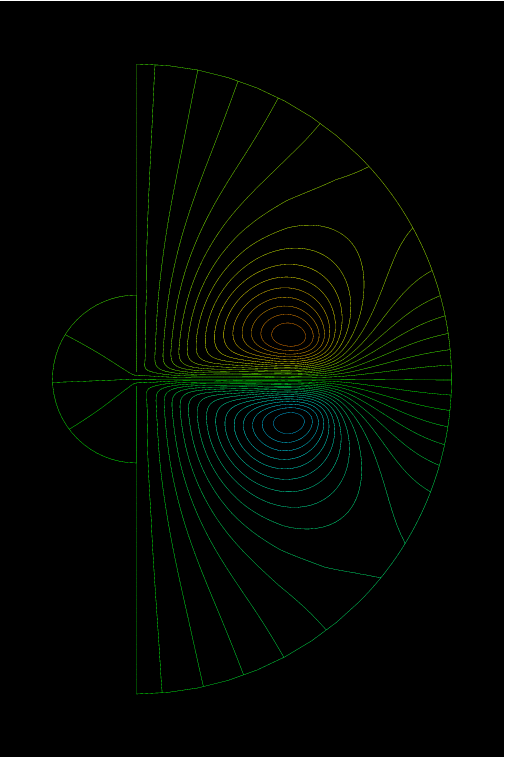

    Visualization via shaded streamline plots (first with adaptive range 1.1 MB and second with fixed range 1.1 MB) and via isolines (third, 5.2 MB).



  • Velocity

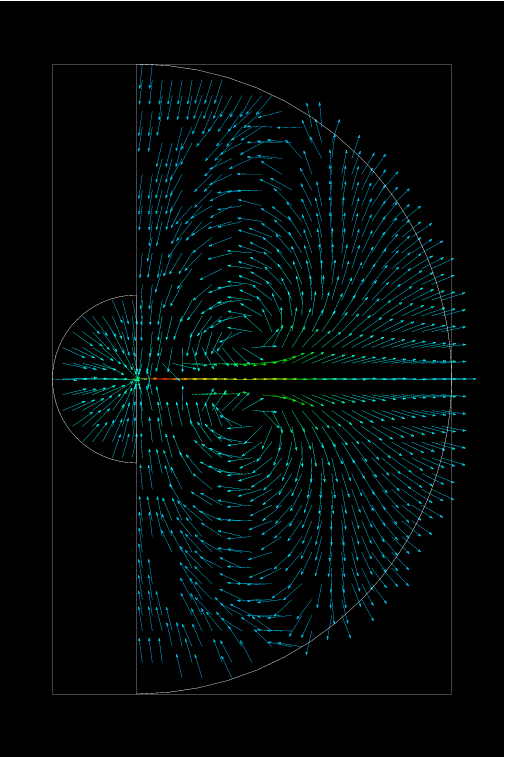

    Visualization via vector plots (vectors, 6 MB)
