Computational Details:

"Leapfrogging of several (4) smoke rings (different speed) at medium Reynolds number" Back to >>Leapfrogging of several (4) smoke rings (different speed) at medium Reynolds number<<


Description of the flow problem
Description of the spatial discretization
Description of the temporal discretization
Computer requirements
Mathematical details




Description of the flow problem

  • diameter of left/right semi-circle: 1.2/4.5
  • diameter of hole in the wall: 0.2
  • natural b.c.'s on semicircles with pressure drop=-1 for T in [0:1] and [2:3]; -2 for [4:5]; -3 for [6:7]; -0.25 otherwise
  • other b.c.'s: zero velocity at straight line ("wall") in interior
  • initial condition at t=0: starting from rest
  • viscosity parameter: 1/nu=1,000




Description of the spatial discretization

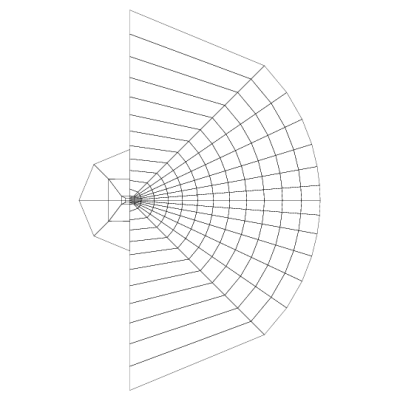

  • coarse mesh (=level 1): 198 cells, 222 vertices, 1,036 d.o.f.'s



  • uniform refinements with exact boundary adaption
  • visualization on level 4: 12,672 cells, 12,857 vertices, 63,728 d.o.f.`s
  • computational mesh on level 5: 50,688 cells, 51,057 vertices, 254,176 d.o.f.`s
  • nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW




Description of the temporal discretization

  • equidistant time stepping for computation with k=0.0011112
  • equidistant time stepping for visualization with k= 0.005 (= 1 frame)
  • Total time T=20 seconds corresponds to 18,000 time steps
  • fractional step theta scheme




Computer requirements

  • date: 04/07/98
  • simulation by: S.Turek
  • visualization by: S.Turek
  • SUN ULTRA 45/250: 43 MB, 163,103 seconds
  • AVS data: 1,213 MB
  • Software: FEATFLOW1.0 + BOUSS




Mathematical details

  • For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
  • The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
