Computational Details:

"(Regularized) Driven Cavity (III) at medium Reynolds number (height 2, width 1 of the cavity)"

• rectangular domain of height 2 and width 1
• Dirichlet b.c.'s for the u-velocity at the top (parabolic with maximum value of 1) and at bottom (parabolic with minimum value of -0.5)
• other b.c.'s: zero velocity at fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=20,000

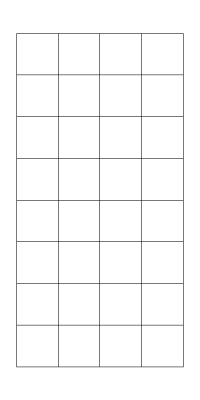

• coarse mesh (=level 3): 32 cells, 45 vertices, 184 d.o.f.'s






• uniform refinements with exact boundary adaption
• visualization on level 7: 8,192 cells, 8,385 vertices, 41,344 d.o.f.`s
• computational mesh on level 9: 131,072 cells, 131,841 vertices, 656,896 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.018518519
• equidistant time stepping for visualization with k=0.166666666 (= 1 frame)
• Total time T=60 seconds corresponds to 3,240 time steps
• fractional step theta scheme

• date: 12/18/97
• simulation by: L. Seoiukova
• visualization by: L. Seioukova
• SUN ULTRA1/170: 107 MB, 127,381 seconds
• AVS data: 477 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
