(Regularized) Driven Cavity (II) at low Reynolds number (height 4, width 1 of the cavity)

(Regularized) Driven Cavity calculation in a rectangle of height 4 and width 1, starting from rest. We only prescribe inhomogeneous boundary data at the top and at the bottom. For the underlying Reynolds number, Re=5,000, the observed flow gets steady. This simulation is part of a Software-Praktikum at the University of Heidelberg in 1997, with the aim to compare different Driven Cavity configurations. See the corresponding pages in the 'Virtual Album'.

• Distribution of temperature/concentration via Boussinesq model

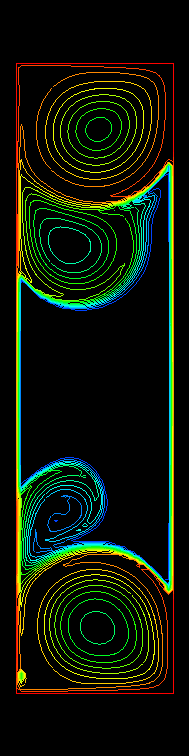

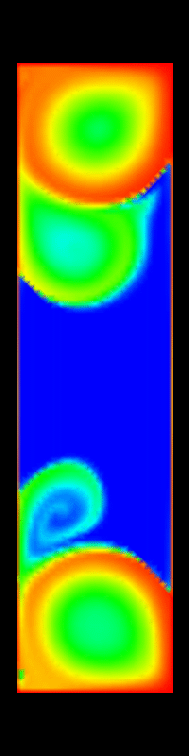

  Visualization via temperature distribution from the heated walls, shaded (first, 4.6 MB) and via isolines (second,10.6 MB).






• Pressure

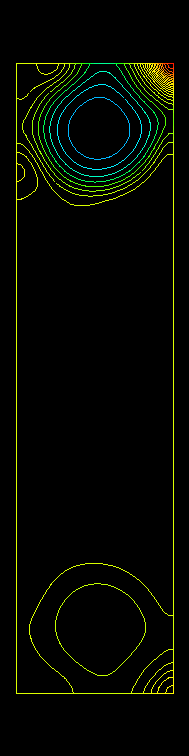

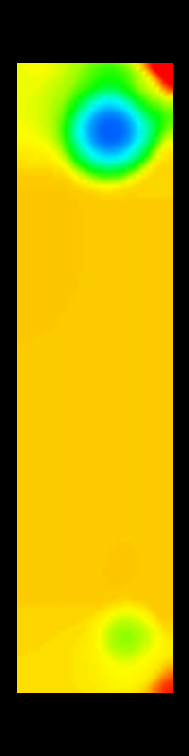

  Visualization via pressure plots, shaded (first, 1.2 MB) and via isolines (second, 4.8 MB).






• Streamfunction

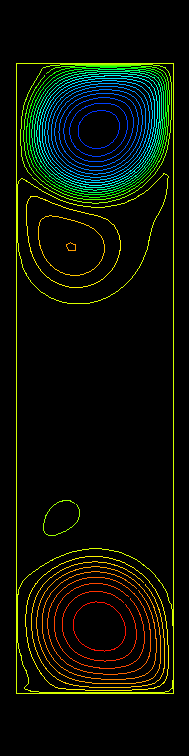

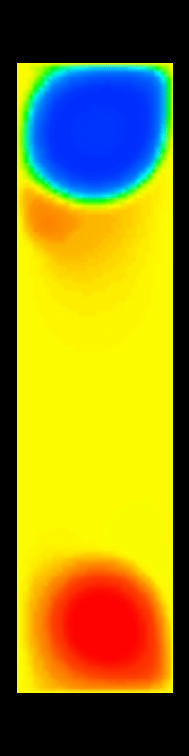

  Visualization via streamline plots, shaded (first, 1.9 MB) and via isolines (second, 5.3 MB).






• Velocity

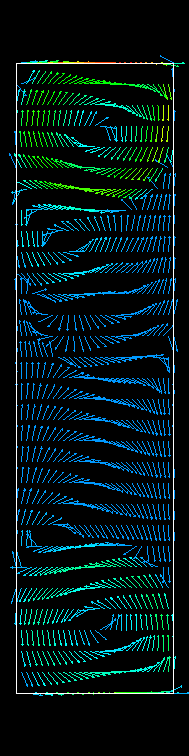

  Visualization via vector plots (vectors, 7.7 MB).
