Computational Details:

"(Regularized) Driven Cavity (I) at medium Reynolds number (height 4, width 1 of the cavity)"

• rectangular domain of height 4 and width 1
• Dirichlet b.c.'s (parabolic with maximum value of 1) for the u-velocity at the top
• other b.c.'s: zero velocity at fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=20,000

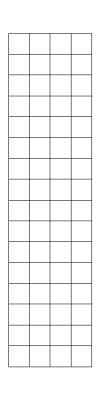

• coarse mesh (=level 3): 64 cells, 148 vertices, 360 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 6: 4,096 cells, 4,257 vertices, 20,800 d.o.f.`s
• computational mesh on level 9: 262144 cells, 263425 vertices, 1,313,280 d.o.f.`s
nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.033333334
• equidistant time stepping for visualization with k=0.2 (= 1 frame)
• Total time T=100 seconds corresponds to 3,000 time steps
• fractional step theta scheme

• date: 12/18/97
• simulation by: L.Seioukova
• visualization by: L.Seioukova
• SUN ULTRA1/170: 224 MB, 251,323 seconds
• AVS data: 352 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
