Channel flow with two bumps at high Reynolds number (nonsymmetric location)

Channel flow with two narrowing sections at high Reynolds number, starting fully developed. Both bumps are at different locations: the height of the lower hill is 0.35, while the upper one has heigth 0.25. The flow shows a complex behaviour which - in addition to the medium Reynolds number case - exhibits oscillations after the first bump.

• Distribution of temperature/concentration via Boussinesq model



  Visualization via distribution of the concentration in the flow field, starting from the inlet, but with different color maps (first, shaded, 1.5 MB, second, shaded, 1.9 MB).








• Pressure



  Visualization via pressure plots, shaded (first, 1.2 MB) and via isolines (second, 5.7 MB).










• Streamfunction



  Visualization via streamline plots, shaded (first, 1.4 MB) and via isolines (second, 6.2 MB).










• Velocity

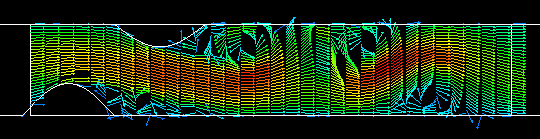

  Visualization via vector plots (11.4 MB) in a zoomed region.
