Channel flow with two opposite symmetric bumps at medium Reynolds number (different heigth)

Channel flow with two narrowing sections at medium Reynolds number, starting from rest. Both bumps are symmetric and opposite, but the height of the lower bump is 0.36, while the upper bump has width 0.34. The flow shows a nonperiodical behaviour, mostly with a preferred flow direction upwards.

• Distribution of temperature/concentration via Boussinesq model



  Visualization via distribution of the concentration in the flow field, starting from the inlet, but with different color maps (first, shaded, 2.4 MB, second, shaded, 3.1 MB).










• Pressure



  Visualization via pressure plots, shaded (first, 1.8 MB) and via isolines (second, 5.6 MB).










• Streamfunction



  Visualization via streamline plots, shaded (first, 2.5 MB) and via isolines (second, 6.5 MB).










• Velocity

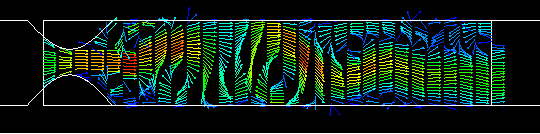

  Visualization via vector plots (17.9 MB).
