Description of the flow problem
-
length of channel: 2.2, height 0.4, diameter of circle: 0.05
-
inflow b.c.'s: parabolic with (maximum) velocity 1.5 at the
left edge
-
outflow b.c.'s: natural "do nothing" b.c.'s
-
circle b.c.'s: rotational tangential speed of size 0 (no
slip), 0.1, 1 and 5
-
other b.c.'s: zero velocity at fixed walls
-
initial condition at t=0: starting from fully developed
-
viscosity parameter: 1/nu=5,000
|
|
|
Description of the spatial discretization
-

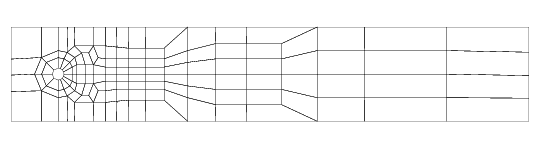

coarse mesh (=level 1): 130 cells, 156 vertices, 702 d.o.f.`s
-
uniform refinements with exact boundary adaption
-
visualization on level 4: 8,320 cells, 8,528 vertices, 42,016
d.o.f.`s
-
computational mesh on level 6: 133,120 cells, 133,952 vertices,
667,264 d.o.f.`s
-
nonconforming nonparametric rotated bilinear fem's (meanvalue
version), UPW
|
|
|
Description of the temporal discretization
-
equidistant time stepping for computation with k=0.00111112
-
equidistant time stepping for visualization with k=0.01 (= 1
frame)
-
Total time T=2.5 corresponds to
2,250 time steps
-
fractional step theta scheme
|
|
|
Computer requirements
-
date: 11/20/97
-
simulation by: S.Turek/H.Scharr
-
visualization by: S.Turek/H.Scharr
-
SUN ULTRA 30/300MHZ: 114 MB, 67,015 seconds (each about)
-
AVS data: 350 MB (each about)
-
Software: FEATFLOW1.0 + BOUSS
|
|
|
Mathematical details
-
For more details about numerical and algorithmic aspects see the
`Mathematical Background' in the
FEATFLOW manual
or
visit our
paper archive for much more details.
-
The problem-specific data for the applied software version
including parameter files and
input data can be downloaded
here!
|
|
