Computational Details:

"Flow around a wing construction at medium Reynolds number (22.5 degree angle of attack)"

• diameter of circle: 10
• length/height of (main) wing : 2.2/0.4
• inflow b.c.'s: normalized Dirichlet data (size 1) depending on the angle of attack.
• other b.c.'s: zero velocity at surface
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=10,000

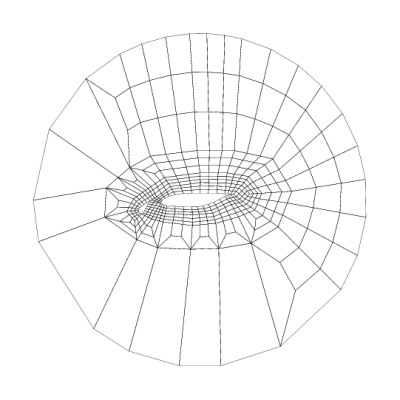

• coarse mesh (=level 1): 411 cells, 448 vertices, 2,131 d.o.f.'s






• uniform refinements with exact boundary adaption
• visualization on level 4: 26,304 cells, 26,607 vertices, 132,128 d.o.f.`s
• computational mesh on level 5: 105,216 cells, 105,823 vertices, 527,296 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.006666667
• equidistant time stepping for visualization with k= 0.1 (= 1 frame)
• Total time T=30 seconds corresponds to 4,500 time steps
• fractional step theta scheme

• date: 01/20/98
• simulation by: S.Turek
• visualization by: L.Seioukova
• SUN ULTRA 45/250: 90 MB, 94,165 seconds
• AVS data: 1,297 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
