Flow around a wing construction at different angles of attack

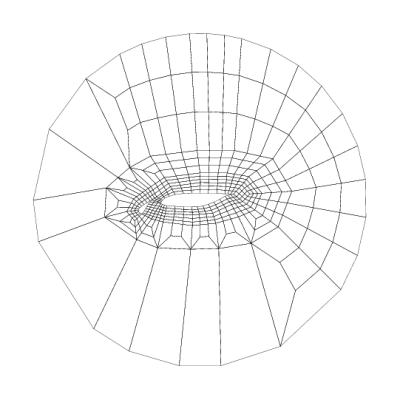

Flow around a wing construction with different angles of attack: 4.5, 13.5 and 22.5 degrees. For the chosen medium Reynolds number - despite the steady inflow profile - the flow gets fully nonsteady. The corresponding coarse mesh (after two refinements) for all calculations is plotted in the following diagram. For a detailed description of the performed flow configurations look at the corresponding pages in the `Virtual Album'.

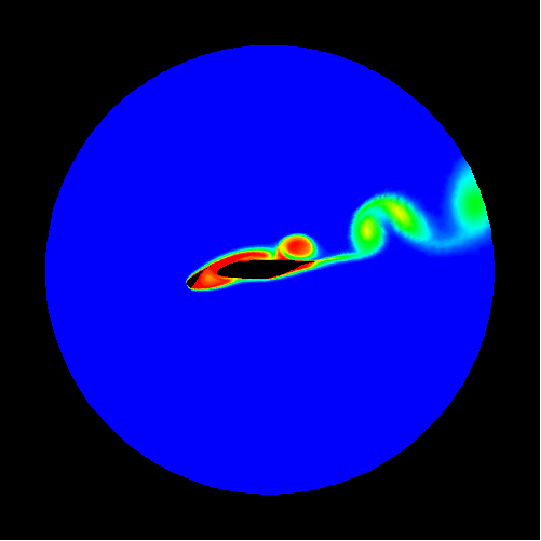

• Distribution of temperature/concentration via Boussinesq model

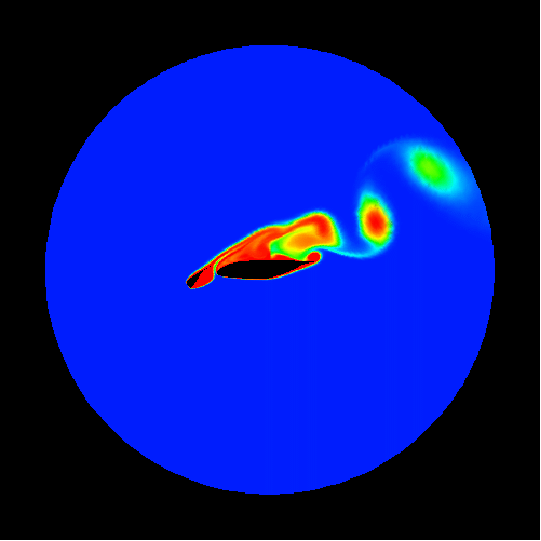

  Visualization via distribution of temperature in the flow field, starting from the heated surface walls. The left video shows the results for 4.5 degrees, followed by 13.5 (middle) and finally for 22.5 degrees angle of attack (right).

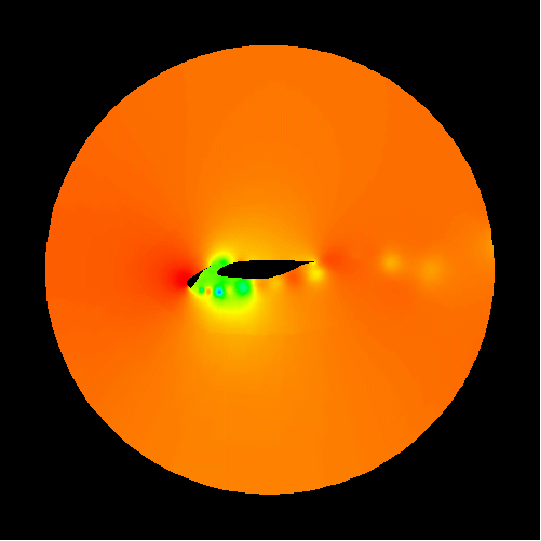

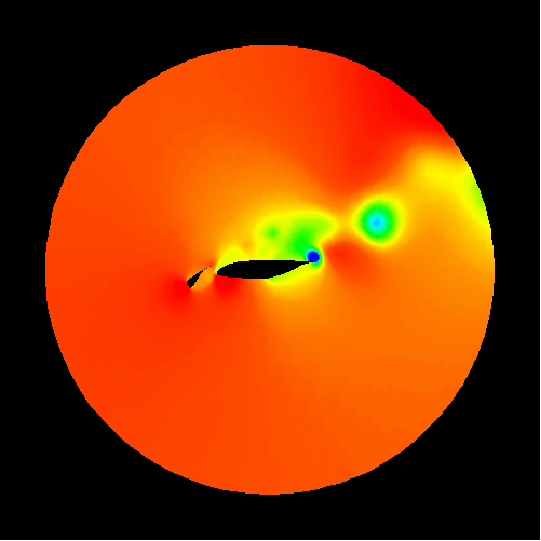

• Pressure

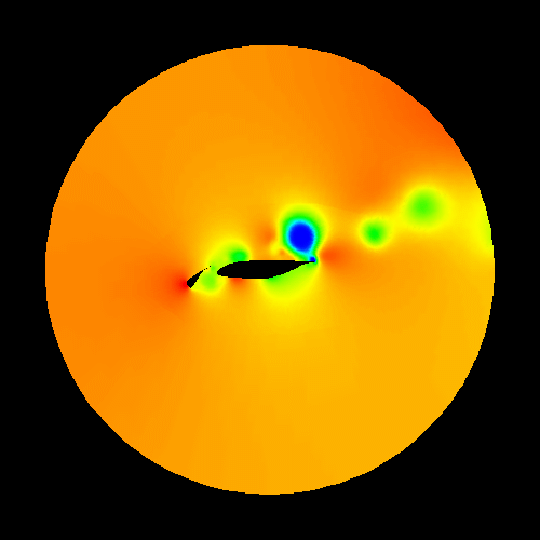

  Visualization via shaded pressure plots.

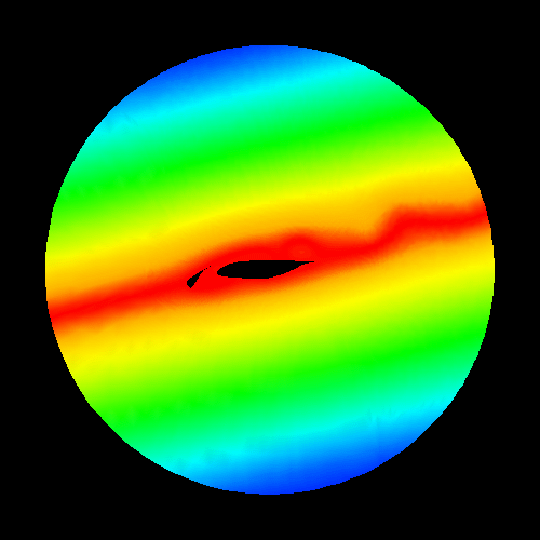

• Streamfunction

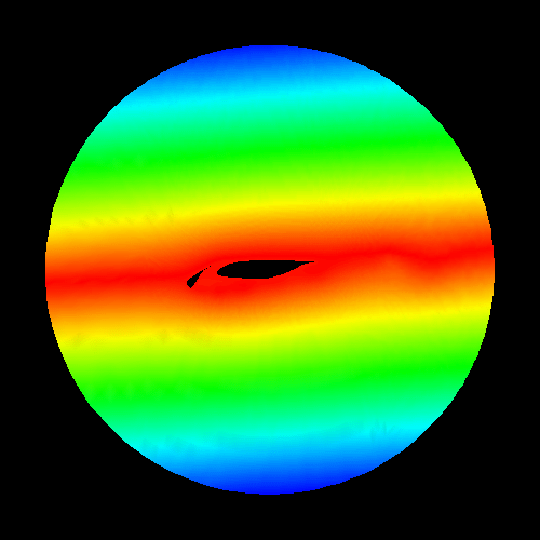

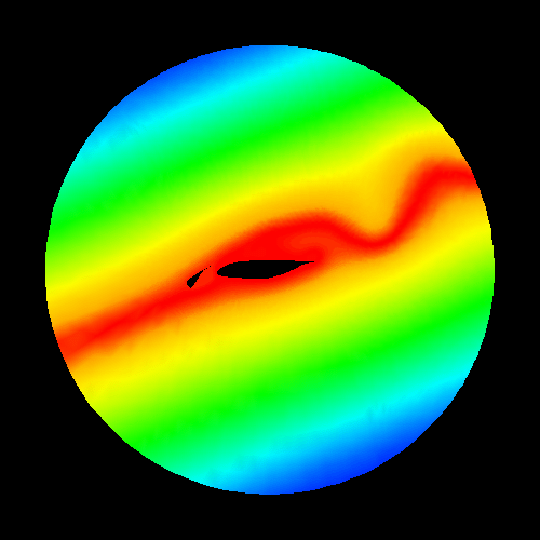

  Visualization via shaded streamline plots.

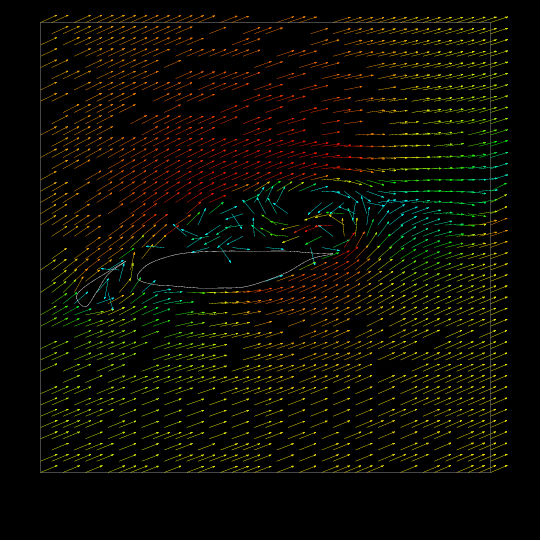

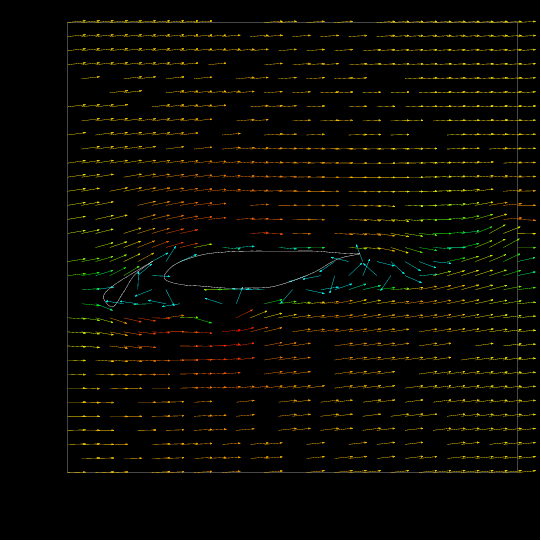

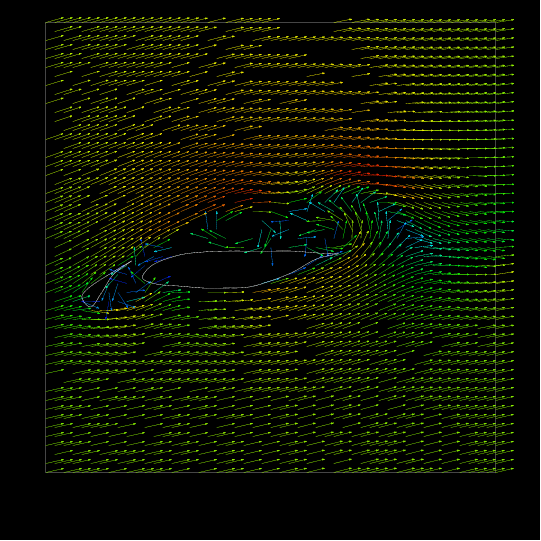

• Velocity



  Visualization via vector plots.
