Flow around a wing construction at medium Reynolds number (variable angle of attack)

Flow around a wing construction with time dependent angle of attack. Up to T=4 the angle of attack is 4.5 degree, changing up to 27 degrees until T=6, staying constant until T=10, going down to 4.5 degrees again until T=12 and preserving this constant value. Consequently, this configuration describes the "starting phase of an aircraft" (in a very qualitative manner) with different angles of attack until the "final height" is reached. This simulation has to be compared with the similar ones in the Album, including lower/higher Reynolds numbers and different angles of attack.

• Distribution of temperature/concentration via Boussinesq model

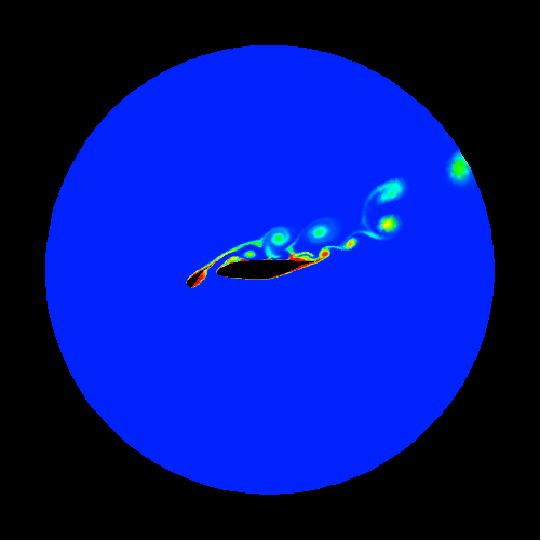

  Visualization via tracing of concentration, starting from the heated surface (shaded, 1.8 MB).






• Pressure

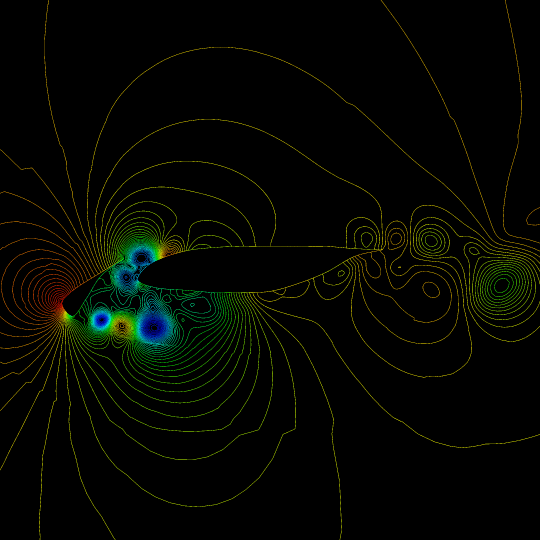

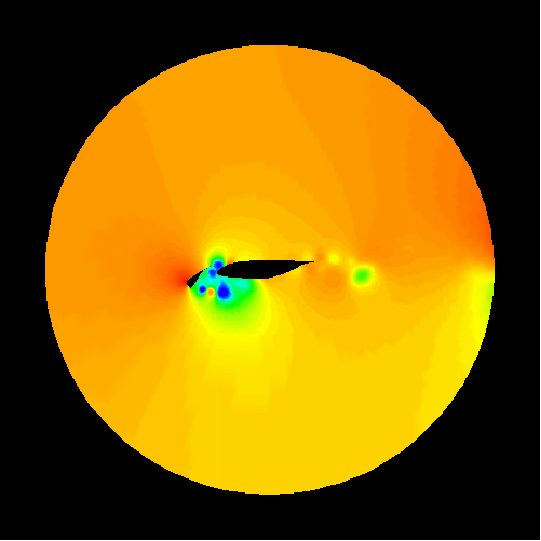

  Visualization via pressure plots, shaded (first, 2.3 MB) and via isolines (second, as zoom, 11.9 MB).






• Streamfunction

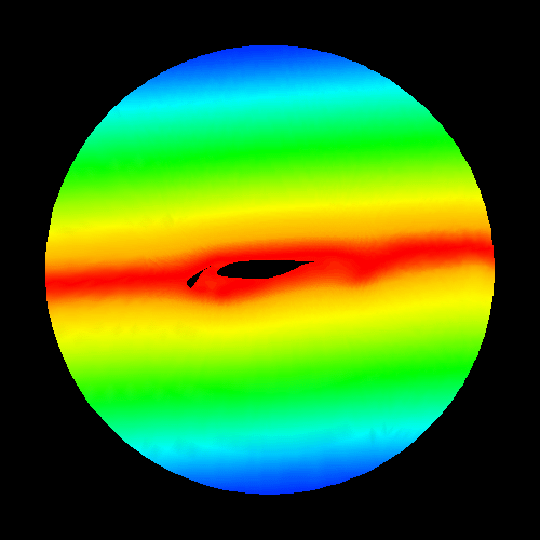

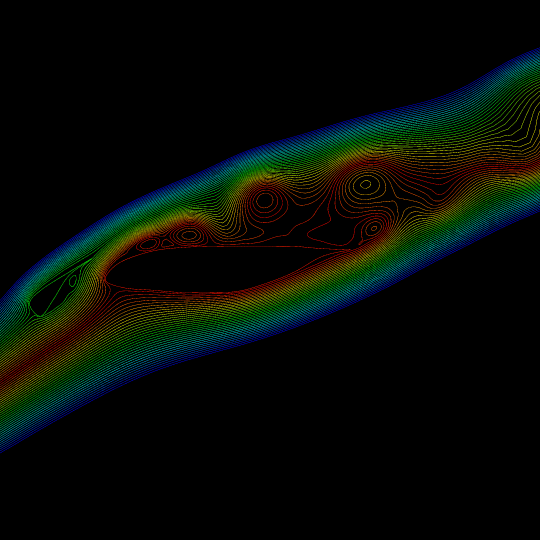

  Visualization via streamline plots, shaded (first, 2.1 MB) and via isolines (second, as zoom, 17.8 MB).






• Velocity

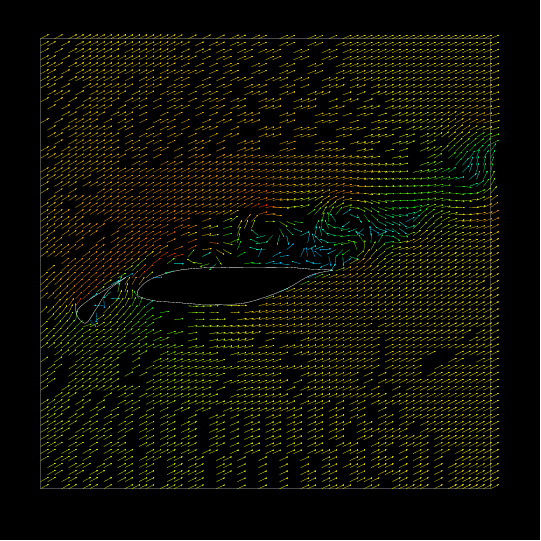

  Visualization via vector plots (vectors, 16 MB) in a zoomed region.
