Study of 'Shell and Tube' Heat-Exchanger exhibiting different tube arrangements (height 4, width 4)

• Engineering point of view:


  `Shell and Tube' Heat-Exchanger are widely spread in the field of chemical engineering.Still it is not clear how to arrange the tubes inside the appartus in order to get a optimal heat-transfer-behaviour.Begining from a simple configuration with only one tube (Rad=1.5; area=pi*Rad^2). we studied case for 2x2 upto 5x5 tube arrangements for constant circumference and constant area.

• Mathematical point of view:

  We studied a 2D cutplane of the above described apparatus. Fluid flow calculation in a square of 4 units with four circles of radius 0.375, with the first circle located at x=1.33 & y=1.33 The calculation starts from rest.The flow is observed with the Reynolds number, Re=1,000.This simulation is part of a Software-Praktikum at the University of Dortmund in 2004'.

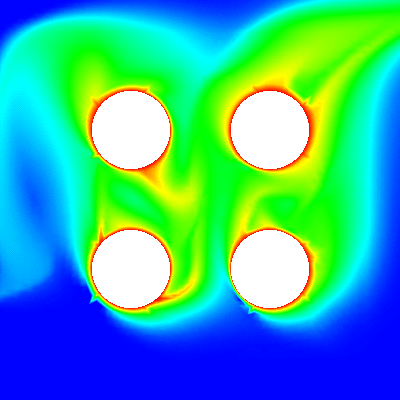

• Distribution of temperature/concentration via Boussinesq model



  Visualization via temperature distribution from the heated circle, shaded (1.3 MB).

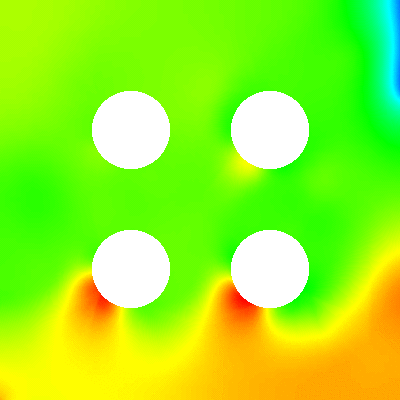

• Pressure



  Visualization via pressure plots, shaded (1.3 MB).

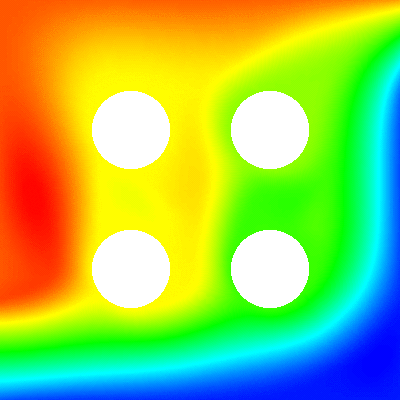

• Streamfunction



  Visualization via streamline plots (1.3 MB).

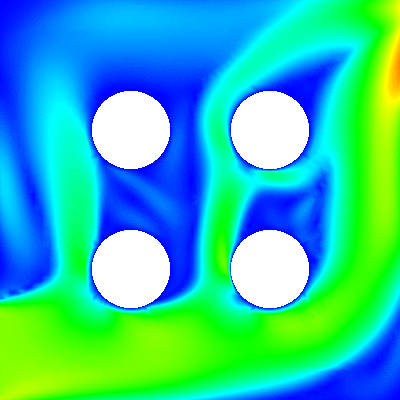

• Velocity



  Visualization via velocity plots (1.3 MB).
