Computational Details:

Study of 'Shell and Tube'-Heat-Exchanger exhibiting different tube arrangements

• squared domain of length 4
• Four heated circles of radius 0.375 with the first circle located at x=1.33 and y=1.33
• Dirichlet b.c.'s for the u-velocity: u=1 at x=0, y<1
• natural "do nothing" b.c.'s for the velocity: x=4, y>3
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=1,000

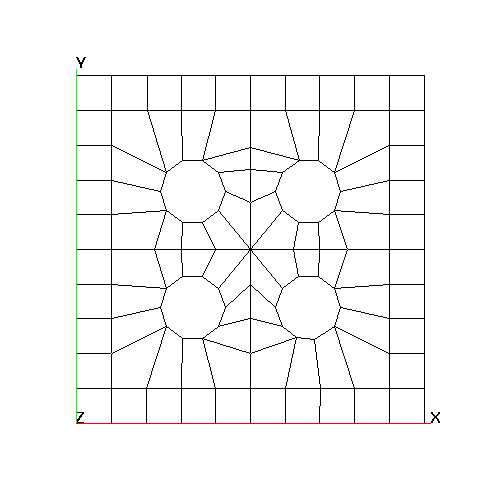

• coarse mesh (=level 2): 208 cells, 248 vertices, 1120 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 5: 13,312 cells, 13,632 vertices, 67,200 d.o.f.`s
• computational mesh on level 5: 13,312 cells, 13,632 vertices, 67,200 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.01
• equidistant time stepping for visualization with k=0.25 (= 1 frame)
• Total time T=15 corresponds to 1,500 time steps
• fractional step theta scheme

• date: 03/11/2004
• simulation by:Purna Chandra Rao Yalamanchili
• visualization by:Purna Chandra Rao Yalamanchili
• SUN ULTRA1/140: 11.20 MB, 3103 seconds
• GMV data: 116.48 MB
• Software: FEATFLOW1.2d + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
