Computational Details:

Study of 'Shell and Tube' Heat-Exchanger exhibiting different tube arrangement

• squared domain of length 4
• 9 heated circles of 0.166 radii
• inflow b.c.'s: u=1 at x=0,y>0 and x=0,y<1
• outfolw b.c.'s: unknown at x=4,y>3 and x=4,y<4
• other b.c's: zero at fixed walls
• initial condition at t=0: starting from rest
• viscosity parameter: 1/nu=1,000

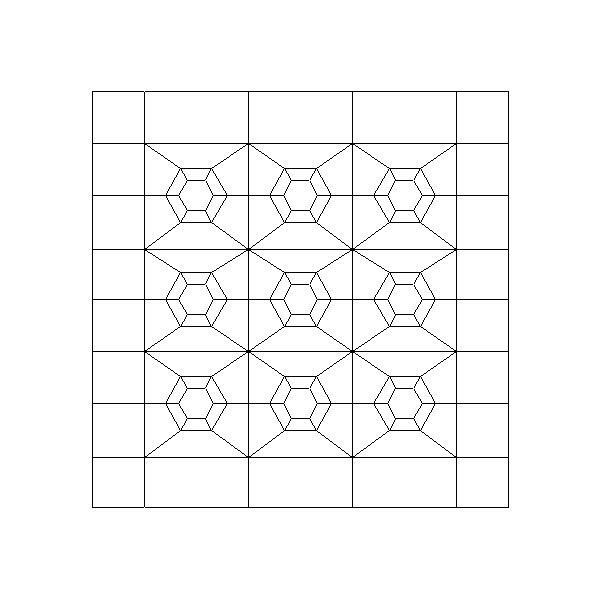

• coarse mesh (=level 2): 520 cells, 592 vertices, 2760 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 4: 8320 cells, 8632 vertices, 42240 d.o.f.`s
• computational mesh on level 4: 8320 cells, 8632 vertices, 42240 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.01
• equidistant time stepping for visualization with k=0.3 (= 1 frame)
• Total time T=30 corresponds to 3000 time steps
• fractional step theta scheme

• date: 03/05/2004
• simulation by:Gaddam Maruthi prasad
• visualization by: Gaddam Maruthi Prasad
• SUN ULTRA1/140: 7 MB, 4766 seconds
• GMV data: 176.6 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
