Flow in a gas burner at medium Reynolds number

Flow (isothermal) in a gas burner at medium Reynolds number. See also the results for the other flow situations. A complete description of this flow type which has been part of a BMBF project can be found at (see the paper archive):

http://www.featflow.de/ture/paper/raschrtu.ps.gz

• Distribution of temperature/concentration via Boussinesq model

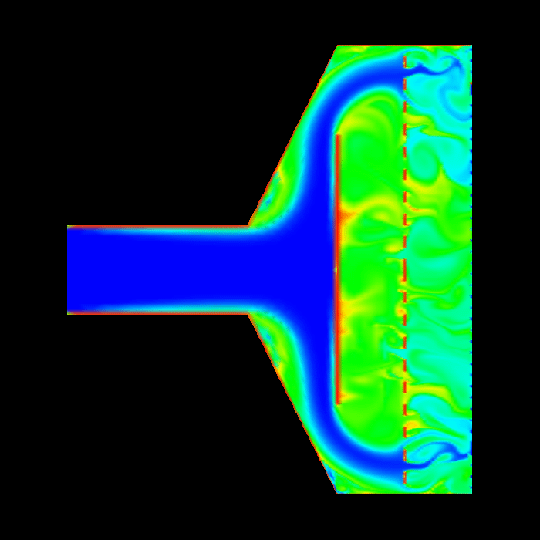

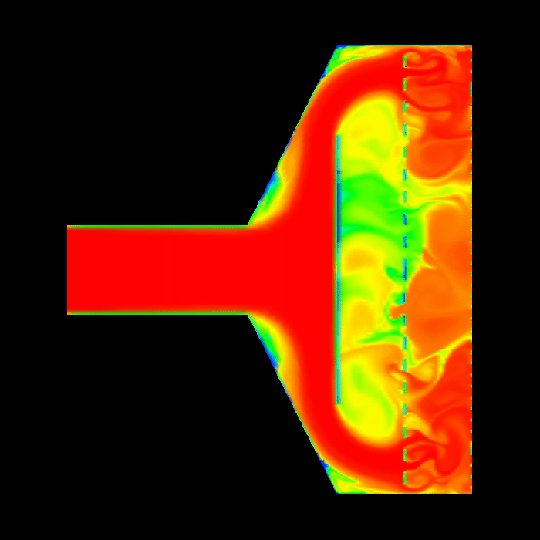

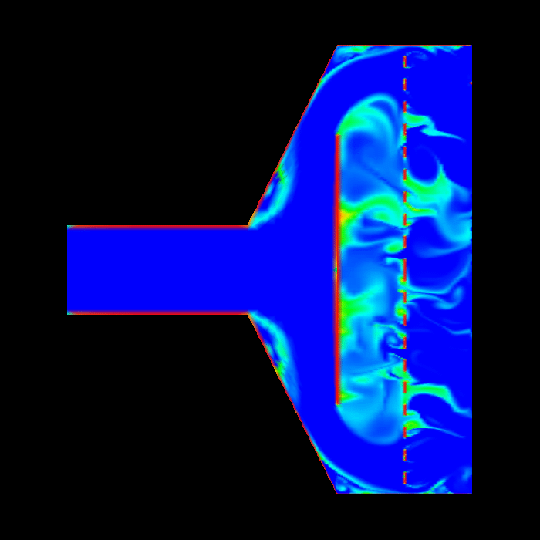

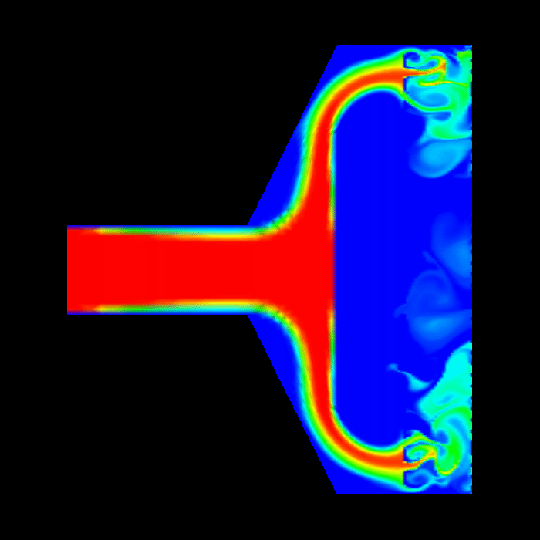

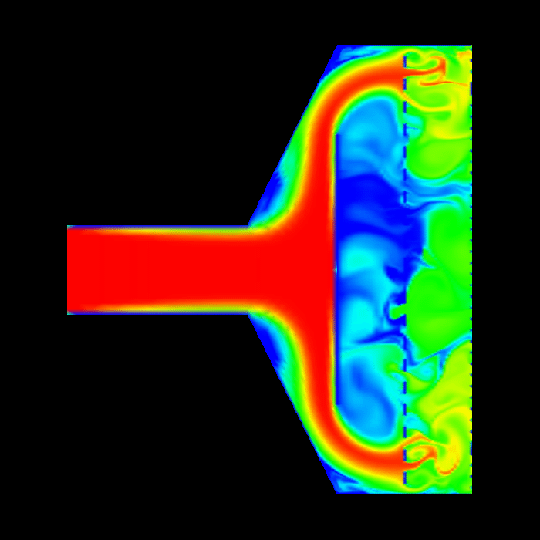

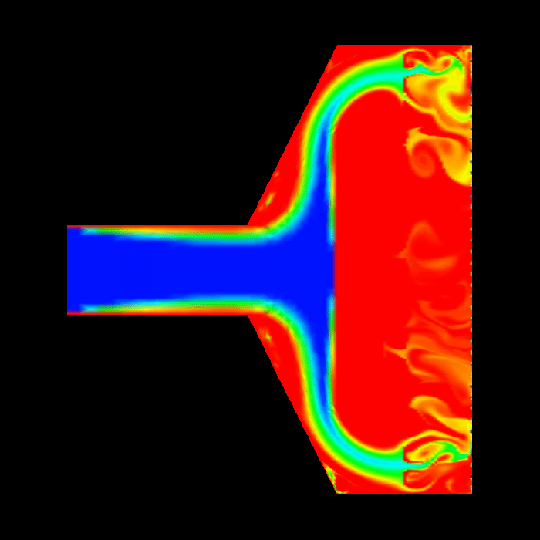

  Visualization via temperature distribution, starting from the inlet (first, second and third, different color maps, 4.3, 3.9 and 4.3 MB), and from the (interior) heated walls (fourth, fifth and sixth, with different color maps, 4.5 MB, 3.8 MB and 5.7 MB).









• Pressure

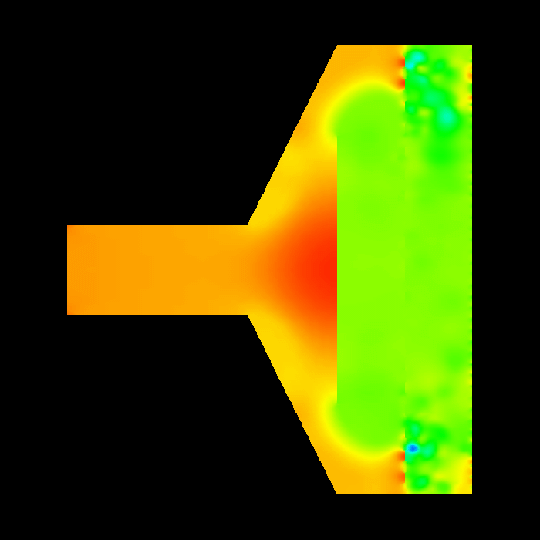

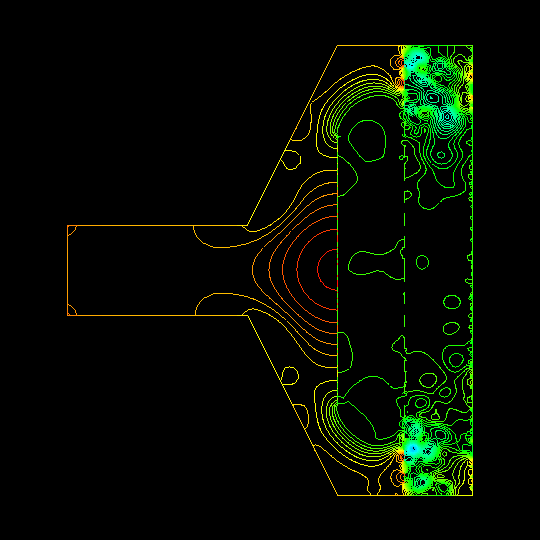

  Visualization via pressure plots, shaded (first and second, different color maps, 1.7 and 2.8 MB) and via isolines (third, 12.3 MB).






• Streamfunction

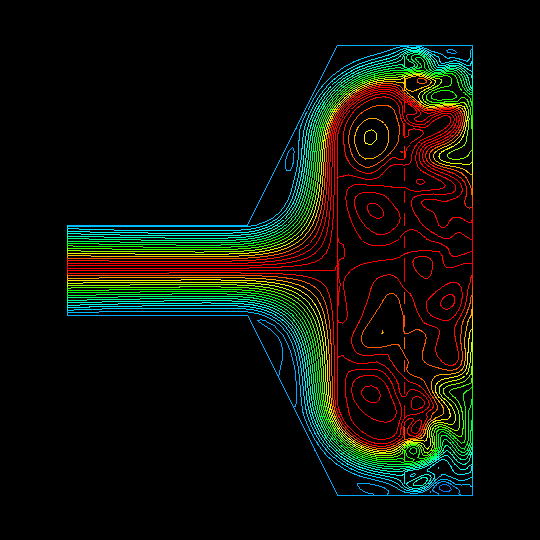

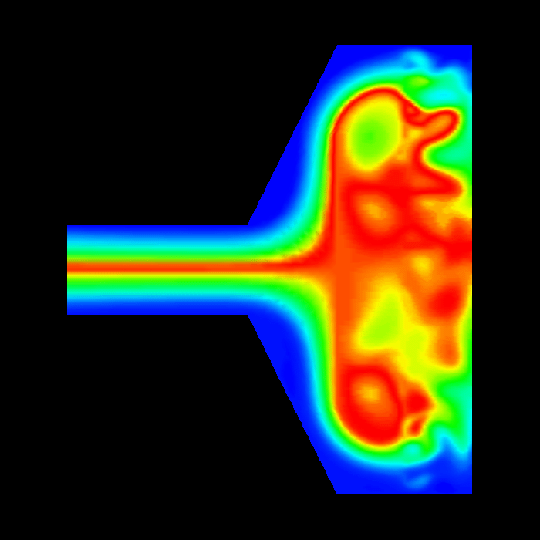

  Visualization via streamline plots, shaded (first, 2.1 MB) and via isolines (second, 14.1 MB).






• Velocity

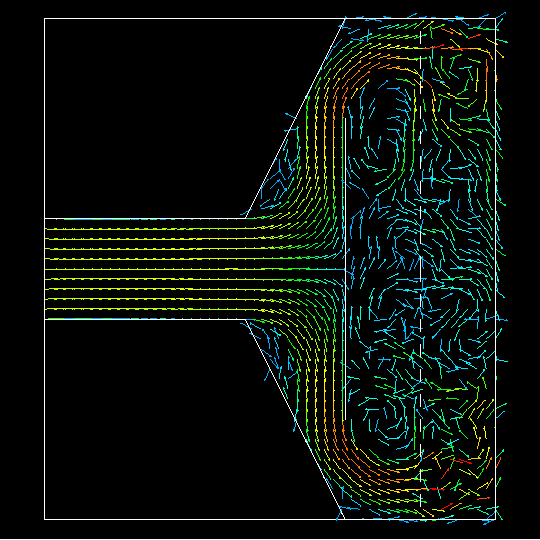

  Visualization via vector plots (vectors, 5.7 MB).
