Computational Details:

"Flow in a gas burner at medium Reynolds number"

• see the description in http://www.featflow.de/ture/paper/raschrtu.ps.gz for the geometrical details
• inflow b.c.'s: constant with (maximum) velocity 1
• outflow b.c.'s: natural "do nothing" b.c.'s
• other b.c.'s: zero velocity at fixed walls
• initial condition at t=0: starting from fully developed
• viscosity parameter: 1/nu=10,000

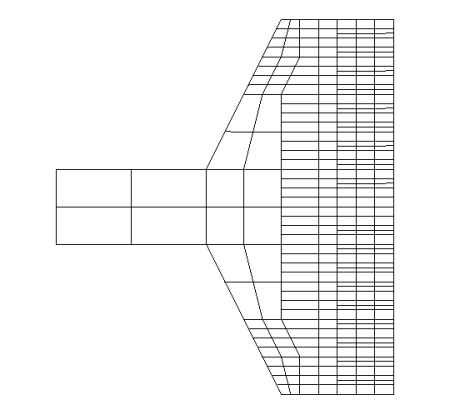

• coarse mesh (=level 1): 302 cells, 376 vertices, 1,696 d.o.f.`s






• uniform refinements with exact boundary adaption
• visualization on level 4: 19,328 cells, 20,053 vertices, 98,128 d.o.f.`s
• computational mesh on level 6: 309,248 cells, 312,205 vertices, 1,555,149 d.o.f.`s
• nonconforming nonparametric rotated bilinear fem's (meanvalue version), UPW

• equidistant time stepping for computation with k=0.022222223
• equidistant time stepping for visualization with k=0.13333333 (= 1 frame)
• Total time T=50 corresponds to 2,250 time steps
• fractional step theta scheme

• date: 09/15/97
• simulation by: S.Turek/L.Seioukova
• visualization by: S.Turek
• SGI PowerIndigo2/R10: 256 MB, 304,127 seconds
• AVS data: 1,230 MB
• Software: FEATFLOW1.0 + BOUSS

• For more details about numerical and algorithmic aspects see the `Mathematical Background' in the FEATFLOW manual or visit our paper archive for much more details.
• The problem-specific data for the applied software version including parameter files and input data can be downloaded here!
